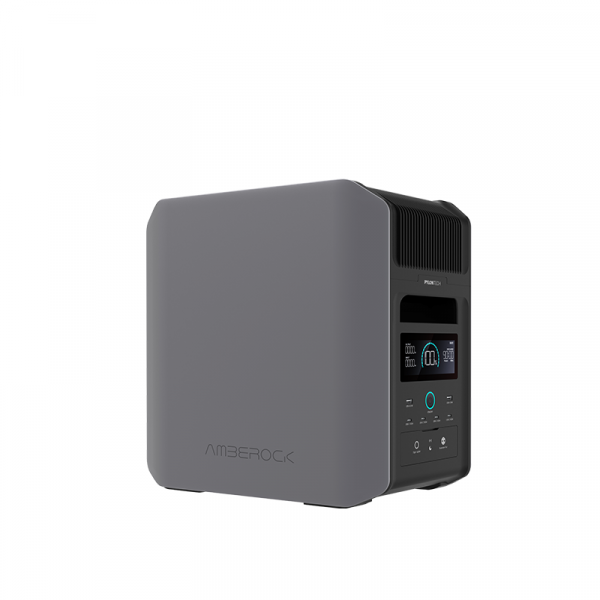

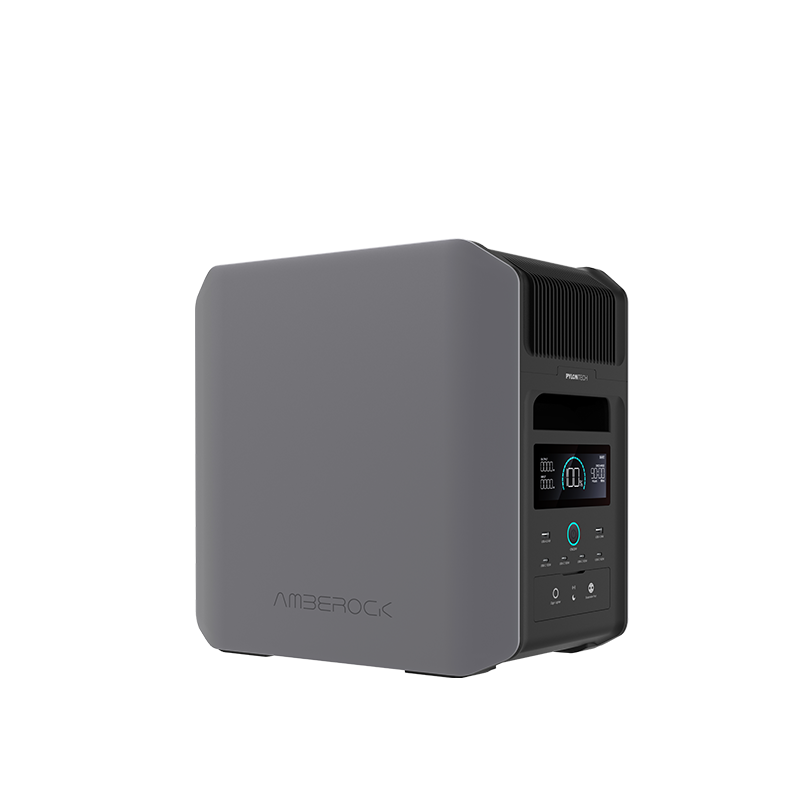

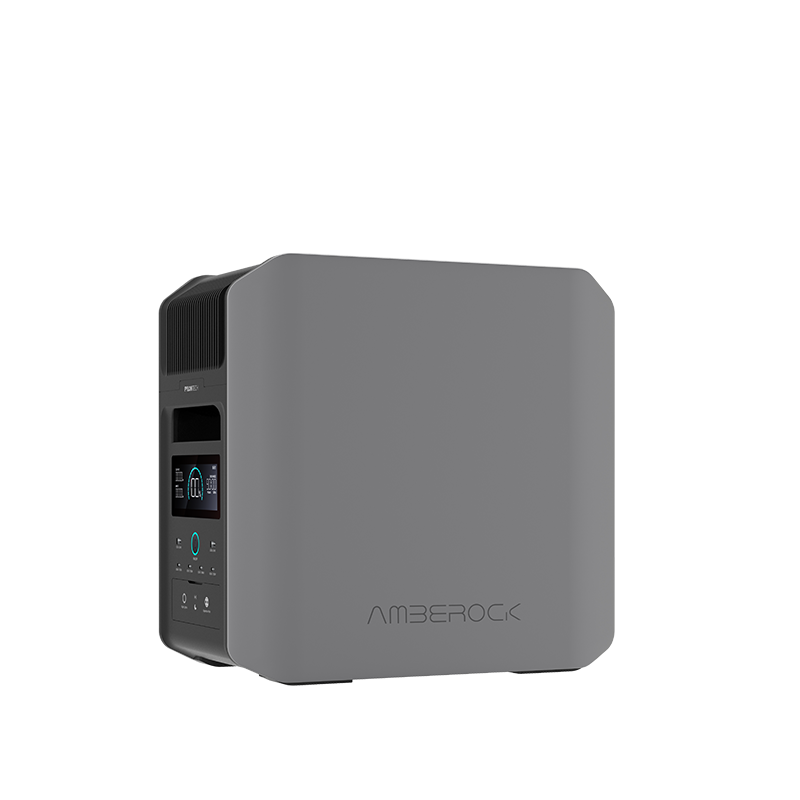

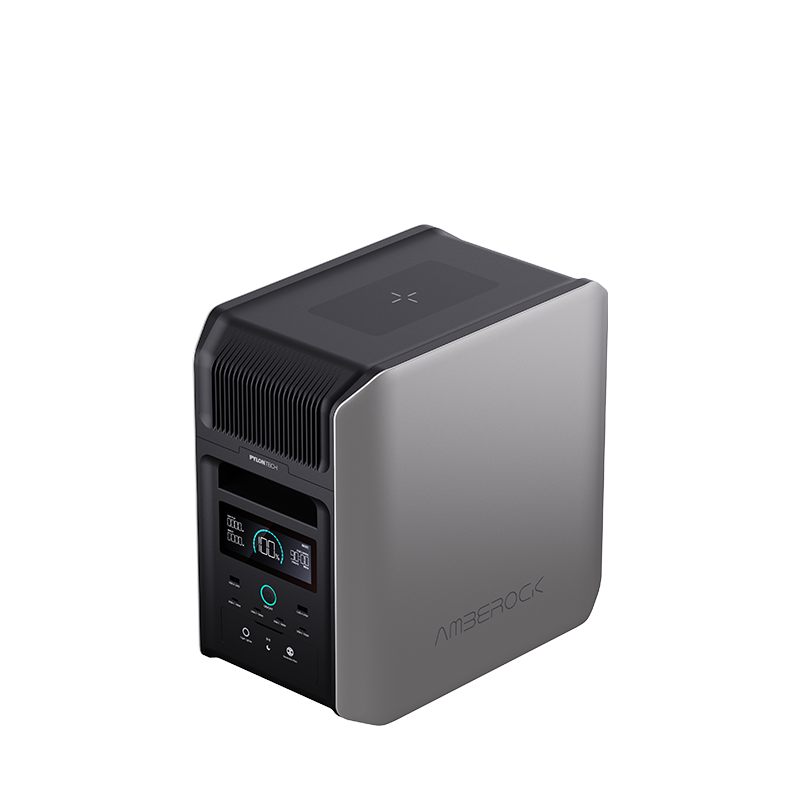

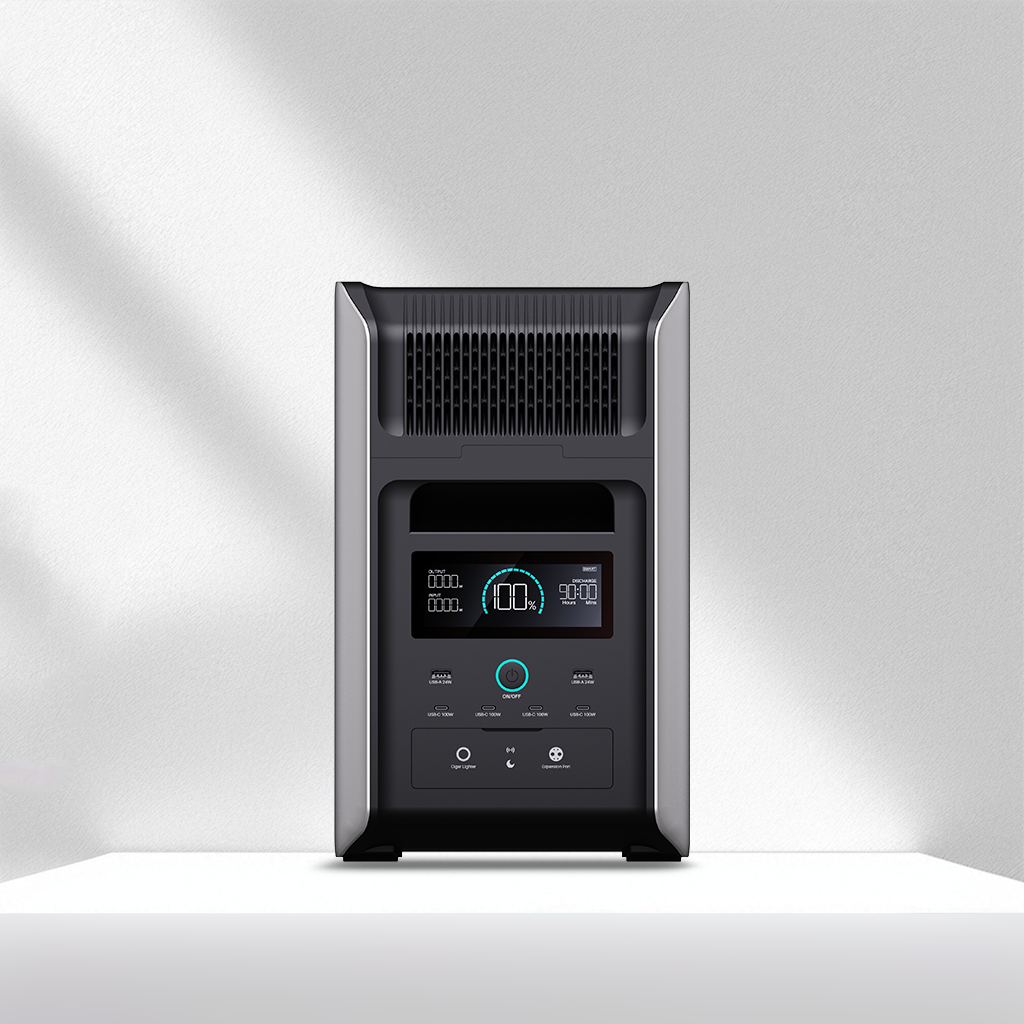

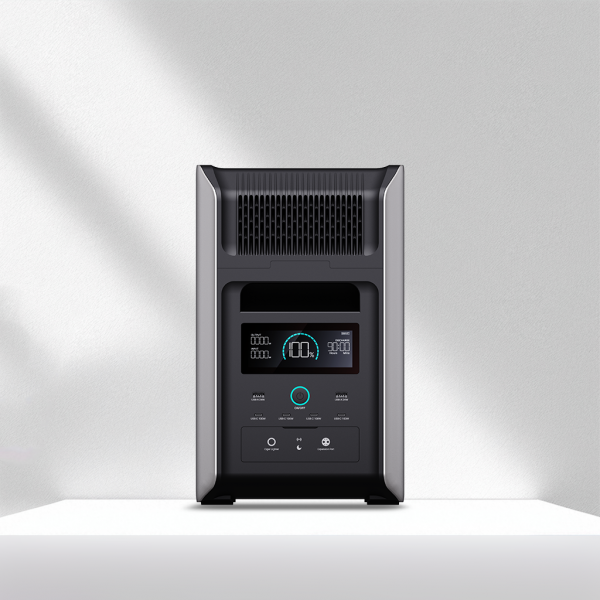

Balcony Solar Energy Storage System
Enjoy Intelligent Al Technology
Plug-and-Play System
| Parameter | Value |
| Charging | |
| Charging Method | AC, PV, 48V DC |
| AC Charging Power | 1800W |
| PV Charging Power | 800W |
| 48V Charging Power | 2000W |
| AC Output | |

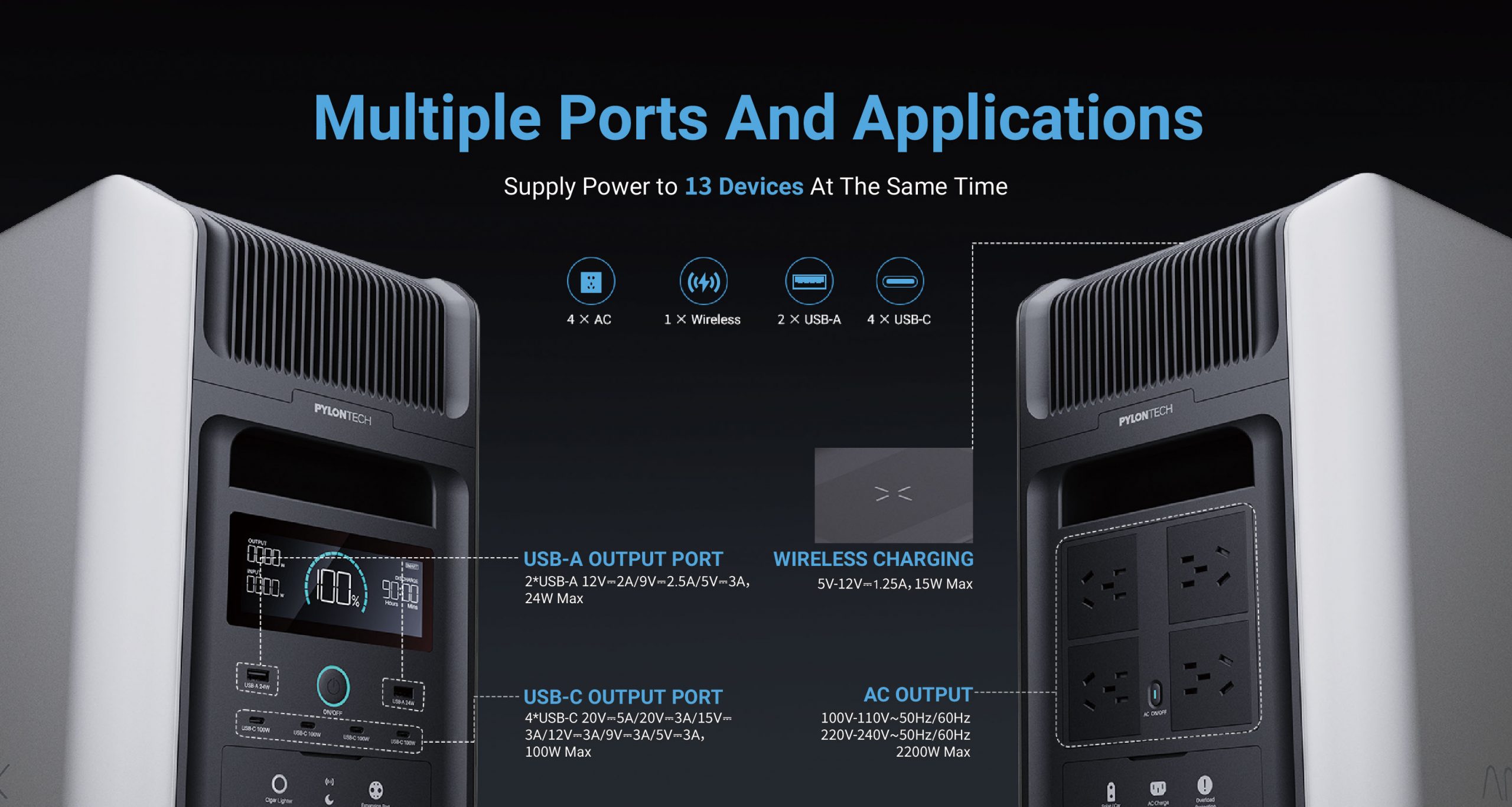

| Port Type and Number | Socket *4 |
| Maximum Output Power | 2200VA |
| Output Voltage | 230V±5% |
| Output Frequency | 50Hz |
| Overload Capability | 105%-120% overload for 10s |
| Cigarette Lighter | |
| Maximum Output Current | 10A |
| Over-current Protection | 12A |
| USB | |
| Port Type and Number | Type-C*4，Type-A*2 |
| Output Power | Type-C,Max100w Type-A, Max 24W |
| Wireless Charging | |
| Output Power | Max 15W |
| Structure | |

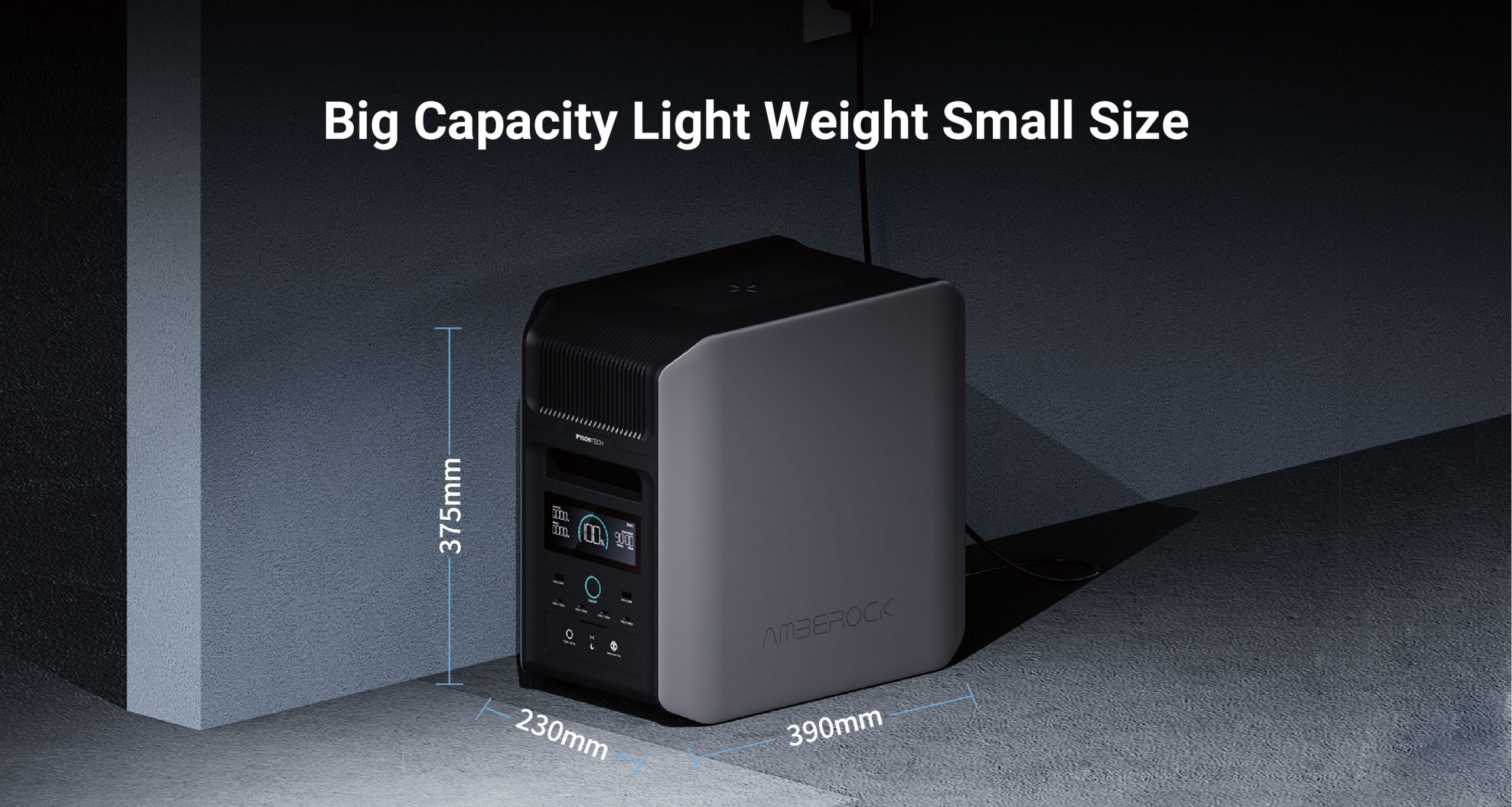

| Dimensions | 390*230*375mm(15.4*9.1*14.8in) |
| Weight | 26.5kg(58.5 lbs) |
| IP Rating | IP20 |
| Environmental Parameters | |
| Charging Temperature | -20°C~55°℃(-4°F~131℉) |
| Discharging Temperature | -20°C~60°C(-4°F~140°F) |
| Storage Temperature | 20°C~30°C(68~86°F) |
| Relative Humidity | 5~85%(no condensation) |
| Altitude | <2000m(6561.68 ft) |
| Communication | |
| Communication method | CAN、RS485、WIF、Bluetooth |
| Cycles | |
| Cycle Count | 3000 |
| Certification | |
| Certification | CB、CE、REACH、WEEE、(EU)2023/1542、POPS、UL、FCC、IC、CA65、DOE、CEC、TPCH、RCM、EMC、WPC、ICASA、LOA、UN38.3 |
