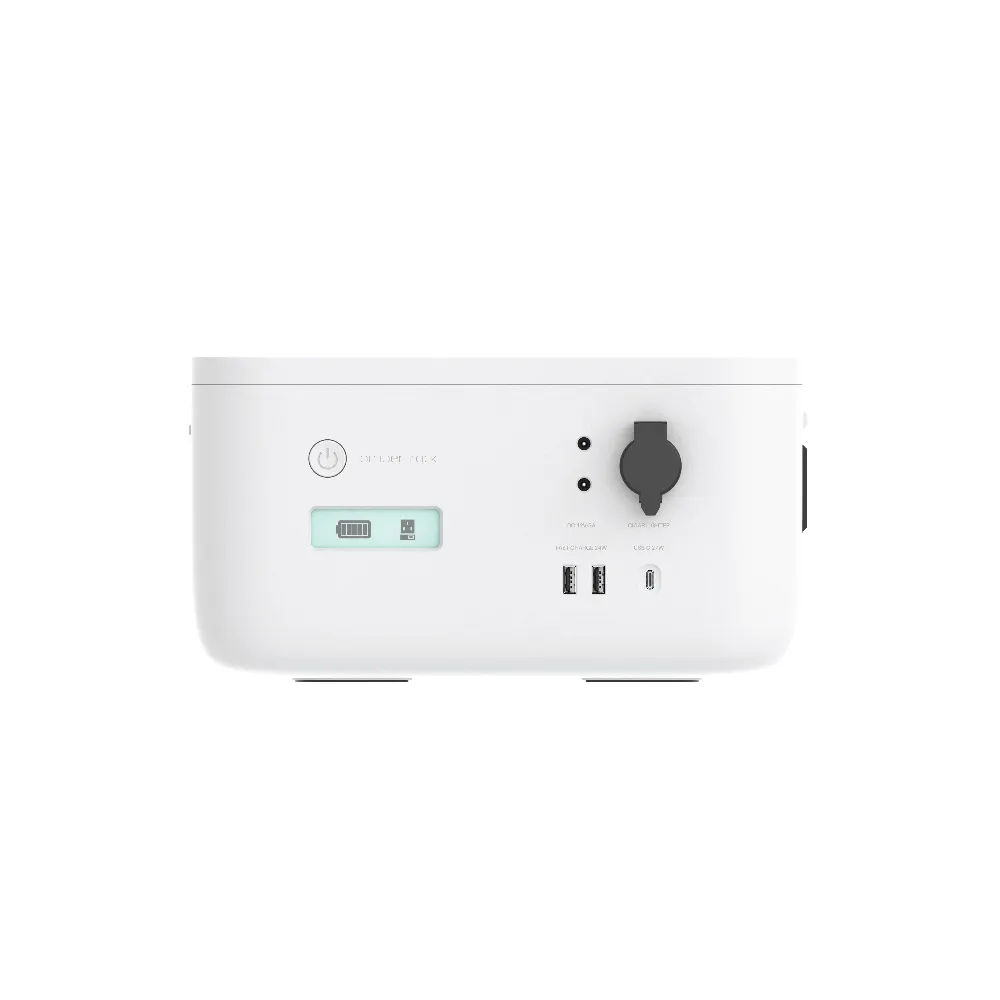

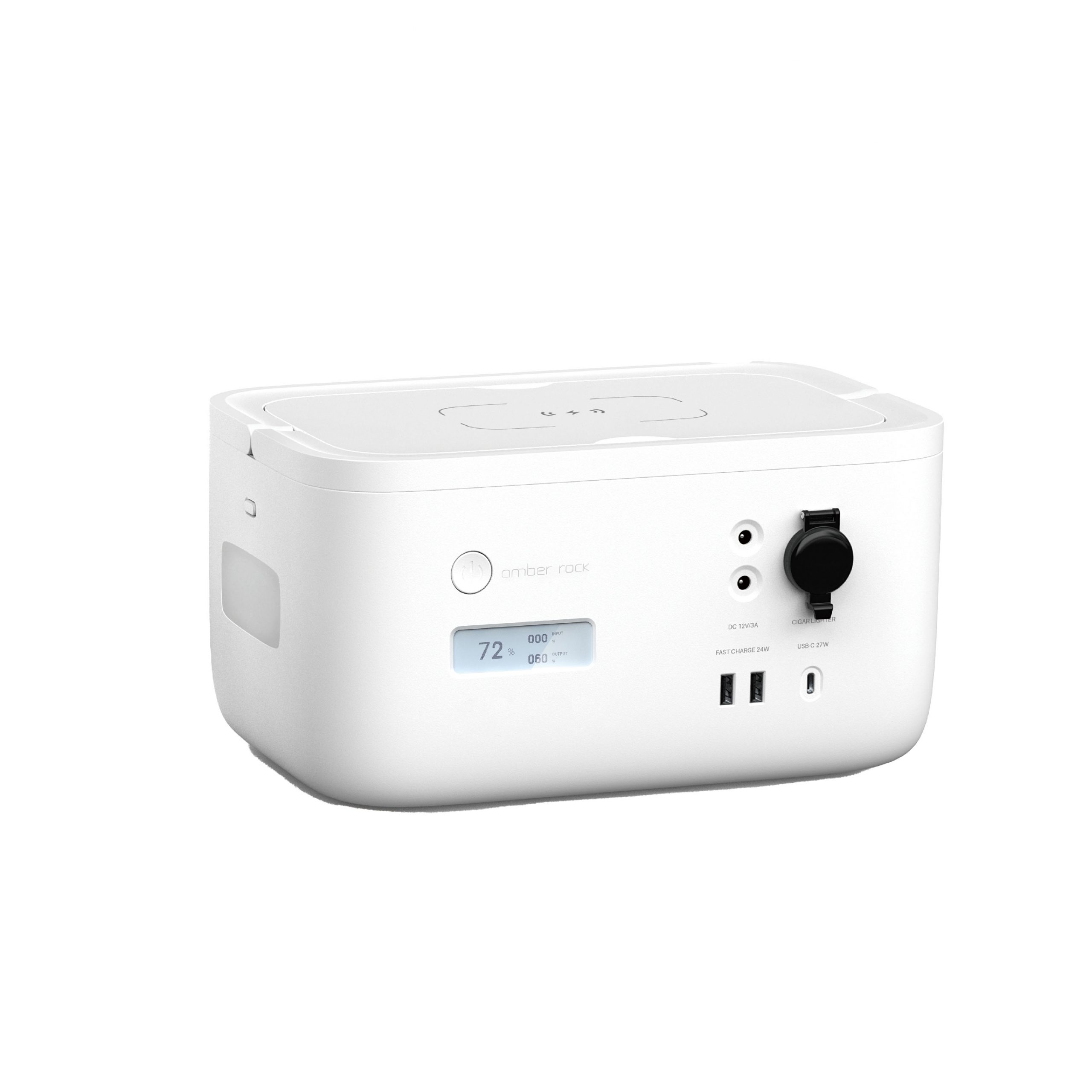

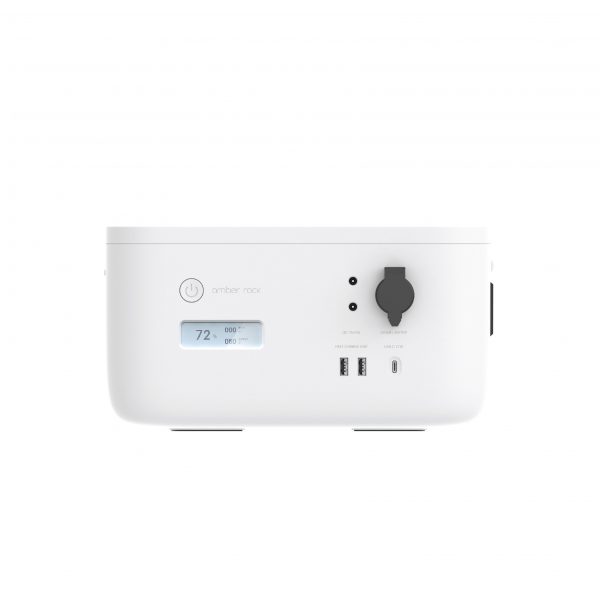

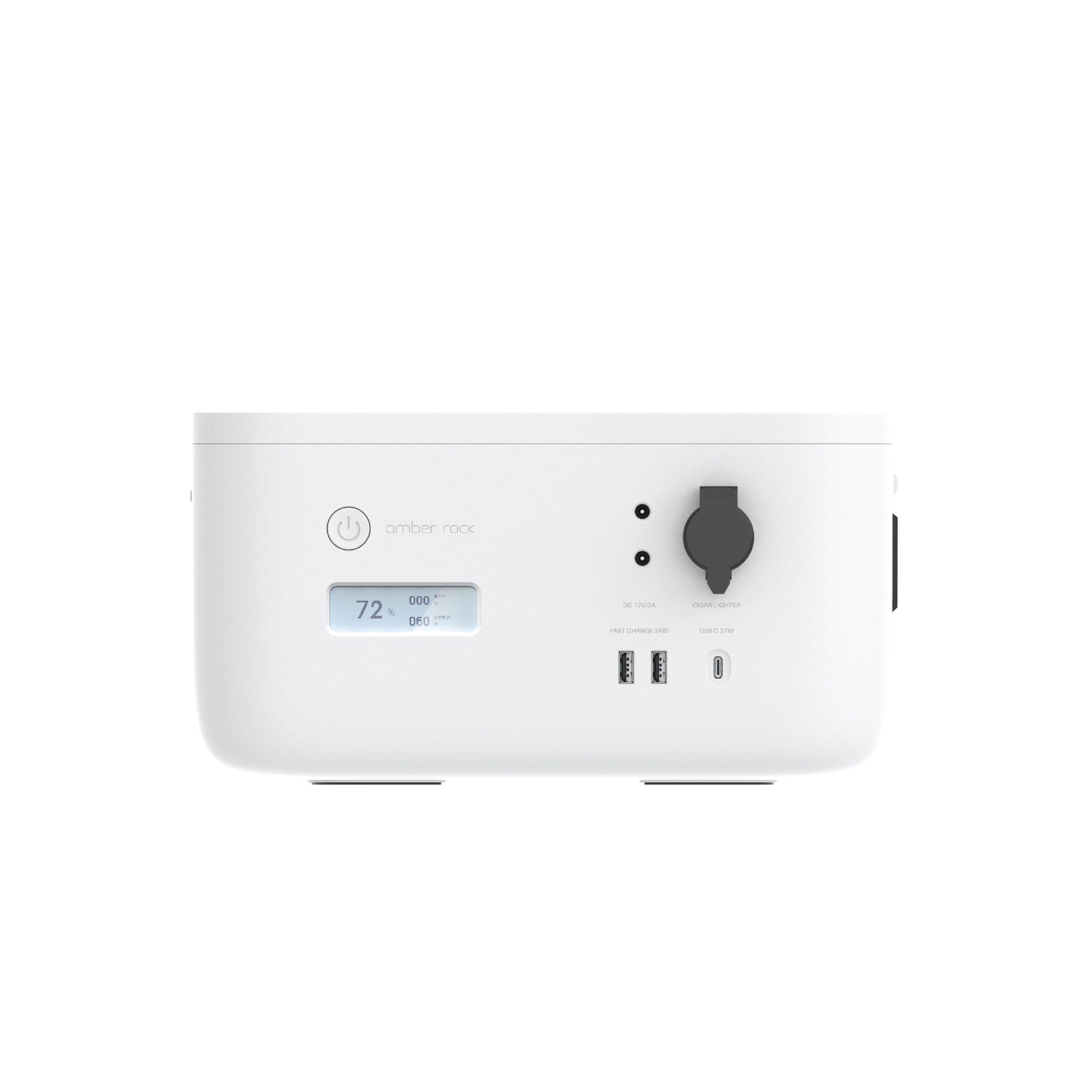

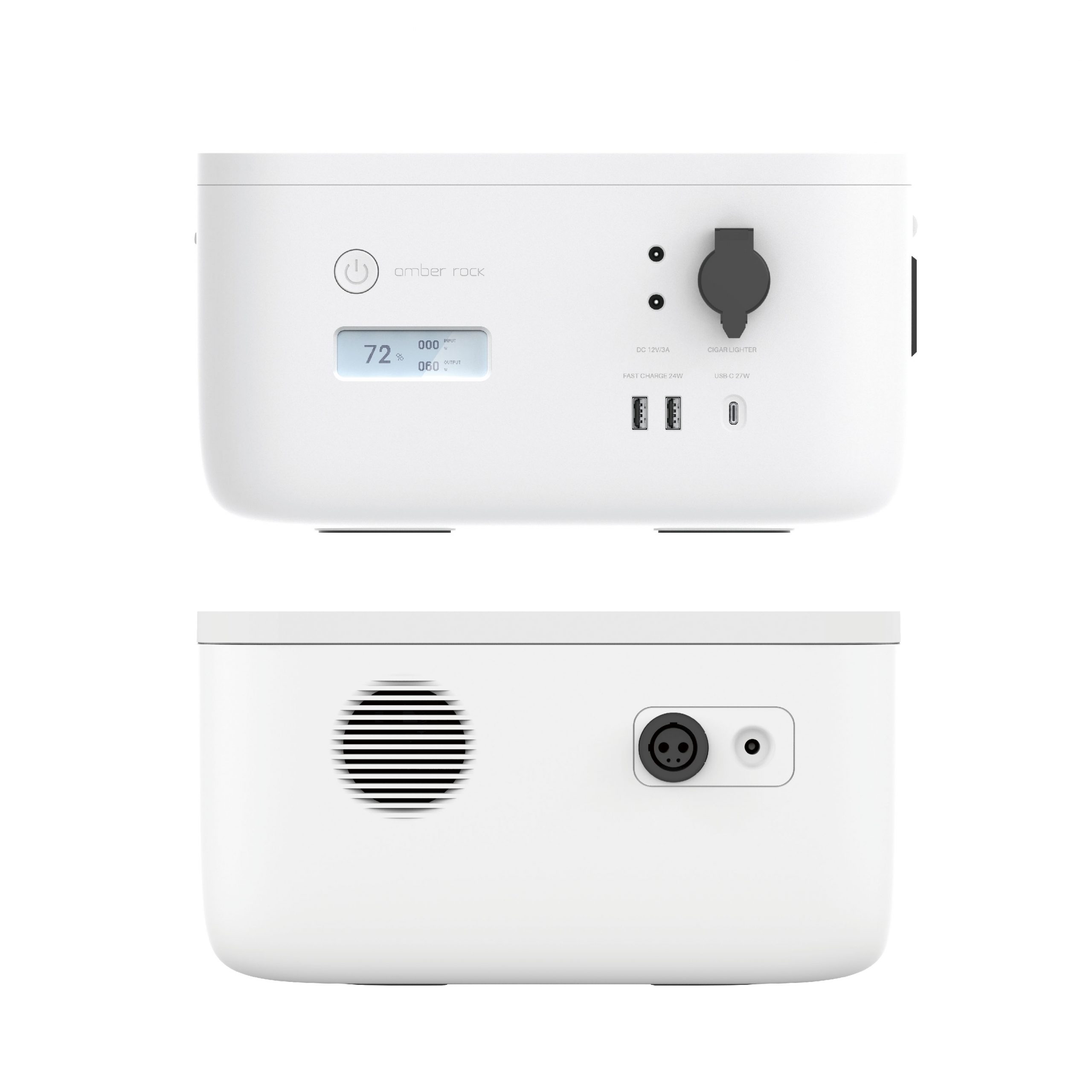

Portable Power Station Expandable Series
| Parameter | Value |
| Battery | |

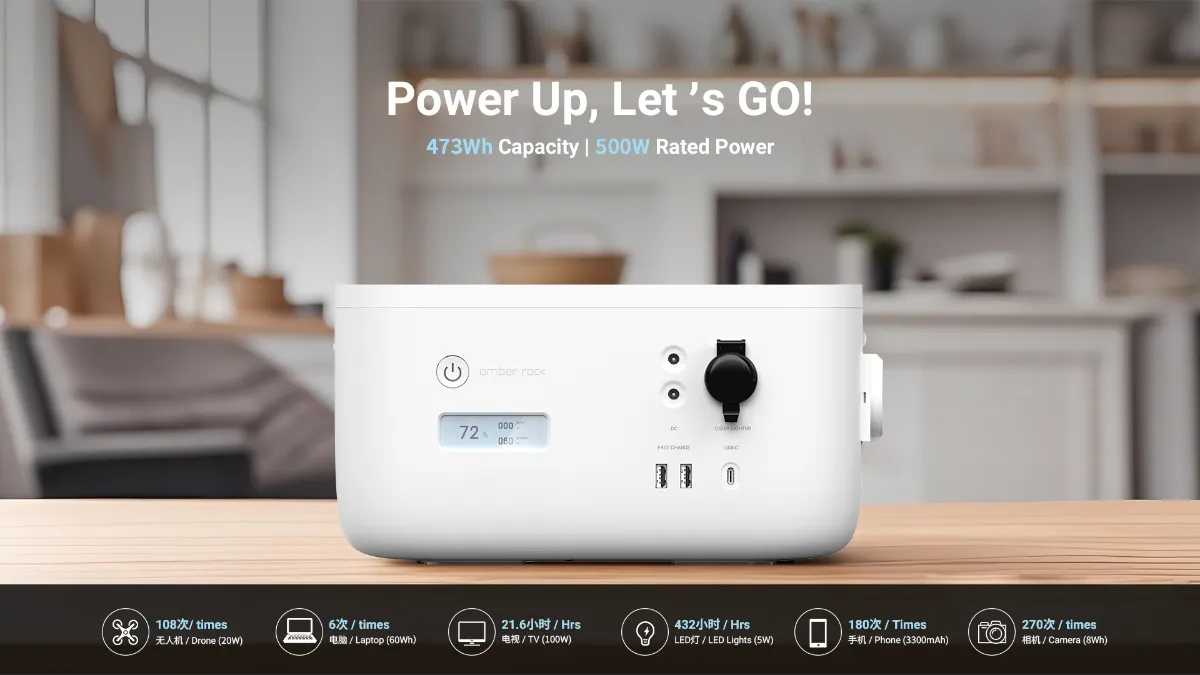

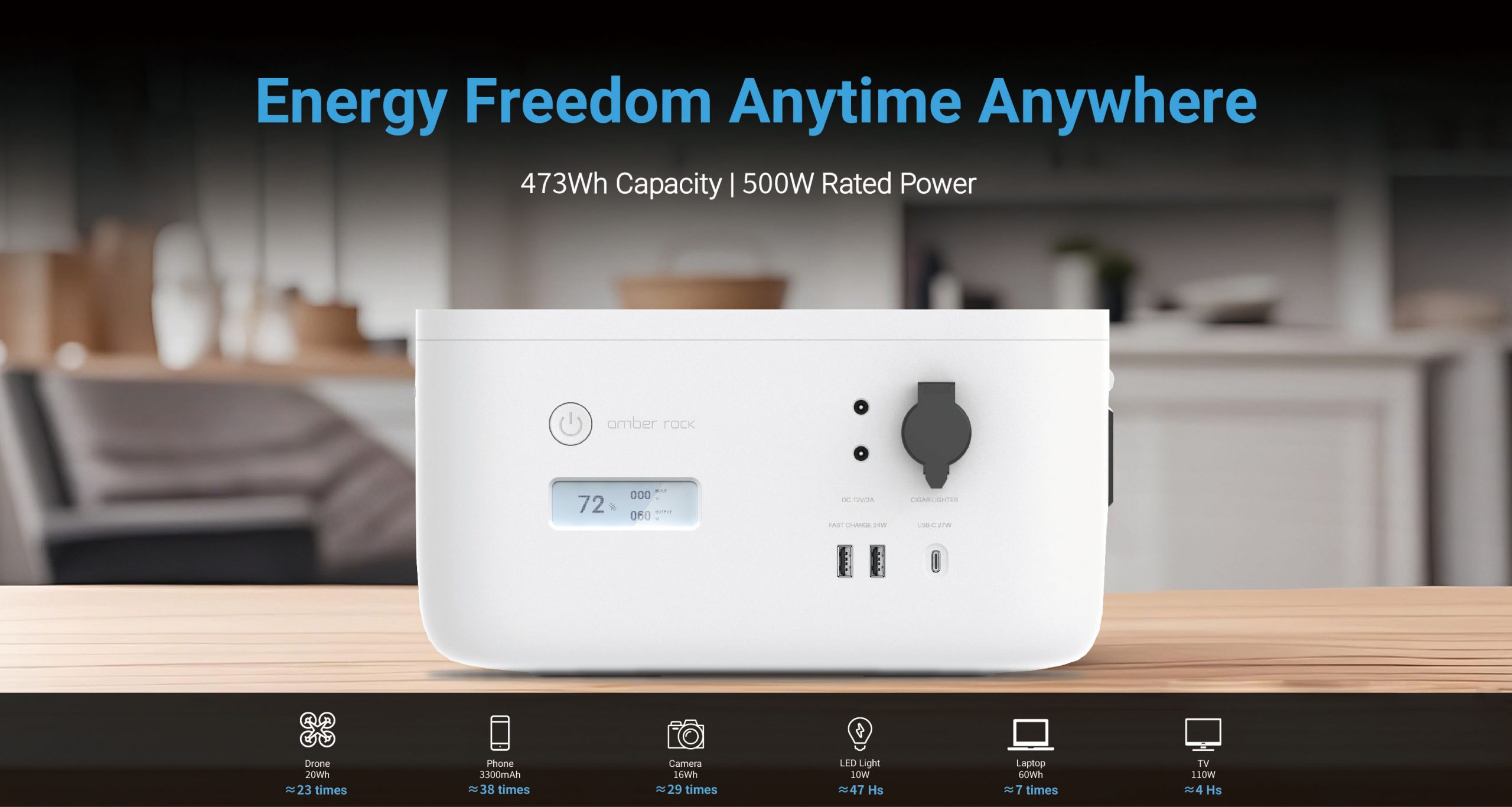

| Rated capacity | 473 Wh (37 Ah) |
| type | LiFePO₄ |
| Charging | |
| Charging method | Adapter,USB |
| AC output | |
| Maximum output power | 500 VA |
| Output voltage | 230 V ± 5% |
| Output frequency | 50 Hz |
| Overload capacity | 110% overload 15s |
| Cigarette lighter | |
| Maximum output current | 10A |
| Overcurrent protection point | 12A |

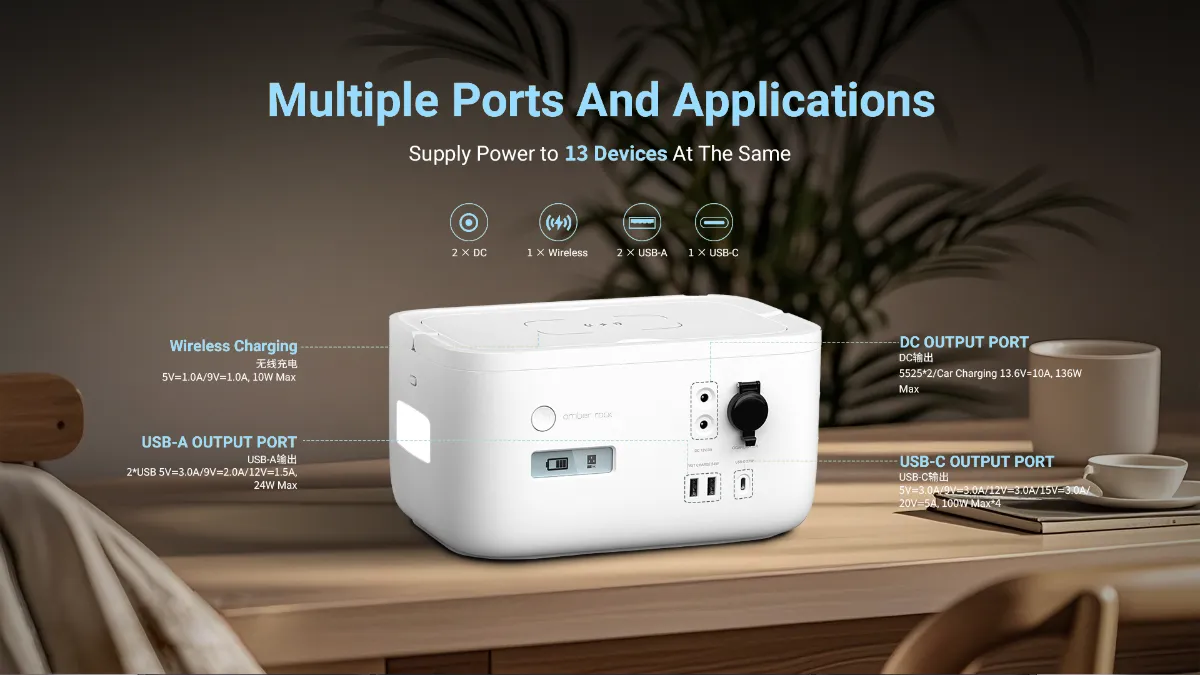

| DC – Jack | |
| Maximum output current | Dual output,5A intal |
| Number of ports | Two ports |
| USB | |

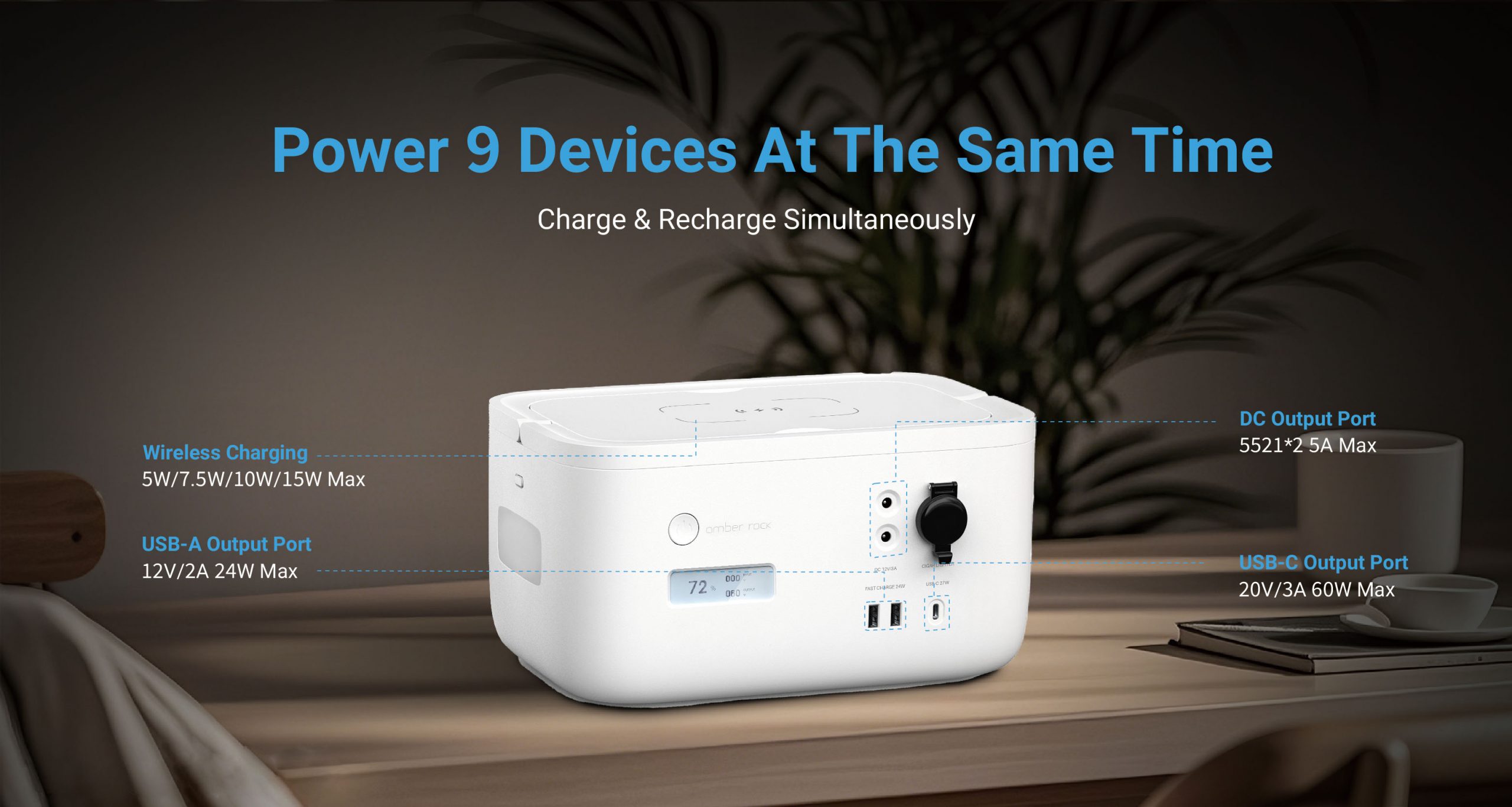

| Port Type and Number | Type-A X 2, Type-C X 1 |
| Output power | Type-A, Max. 24 W Type-C, Max. 60 W |
| LED lighting | |
| Output power | Low light mode 1.5W , Strong Light mode 6W |
| SOS call | Yes |
| Wireless charging | |
| Output power | Max. 15 W |
| Structure | |

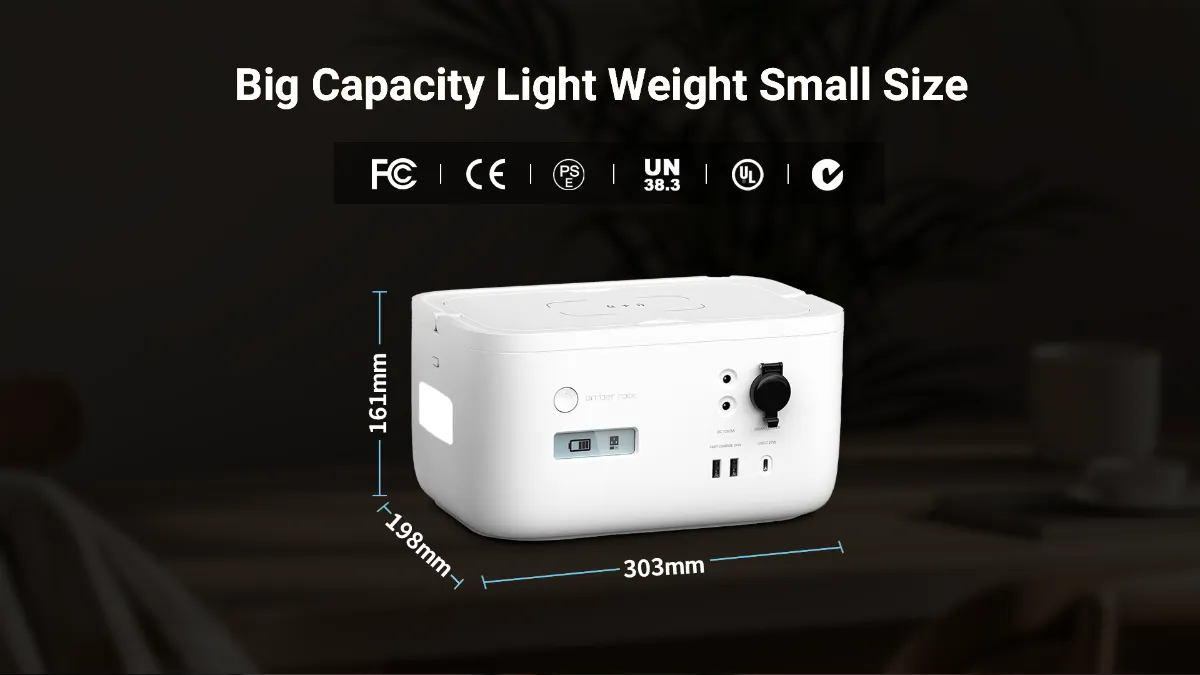

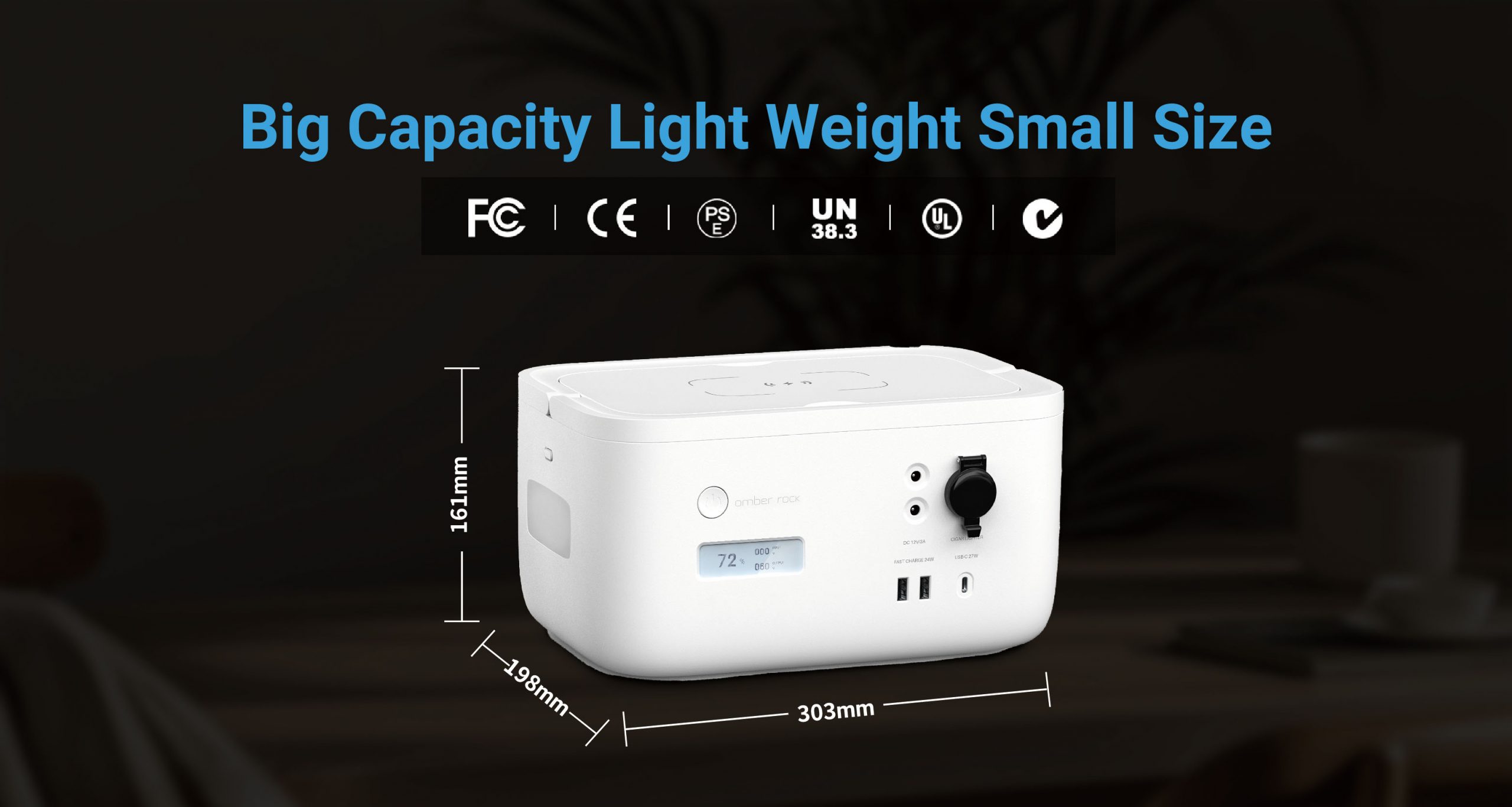

| Dimensions | 303 X 198 X 161 mm(12*7.8*6.4in) |
| Bare weight | 6.4 kg(14.2 lbs) |
| IP Rating | IP20 |
| Cooling method | Air cooling |
| Environmental parameter | |
| Recommended operating temperature | 0 °C ~ 40 °C(32℉~104℉） |
| Storage and transport temperature | Short-term: -20 °C ~ 40 °C（-4℉~104℉），Long-term: 20 °C ~ 30 °C（68℉~86℉） |
| Relative humidity | 0~85% (no condensation) |
| Altitude | ≤ 2000 m |
| * The above data is based on controlled environment test records、 and actual use depends on external environment conditions. | |

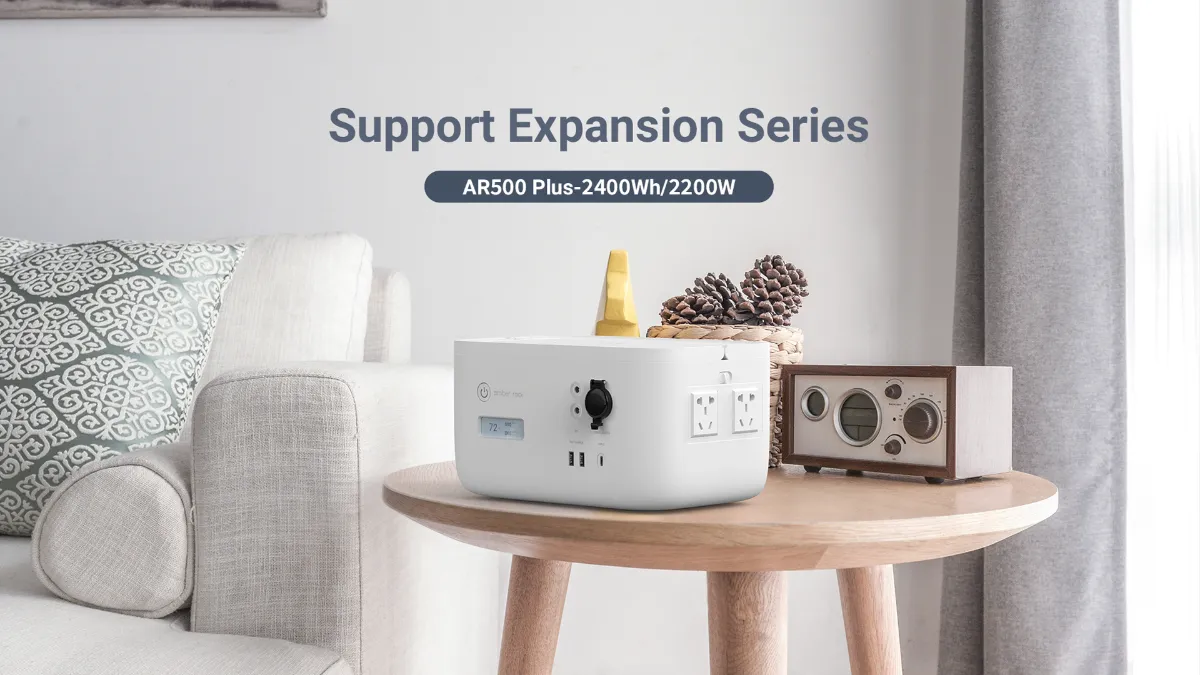

We offer multiple capacity models ranging from 179.2Wh to 2400Wh, with output power covering 300W to 2200W of pure sine wave AC output, meeting various power consumption needs.

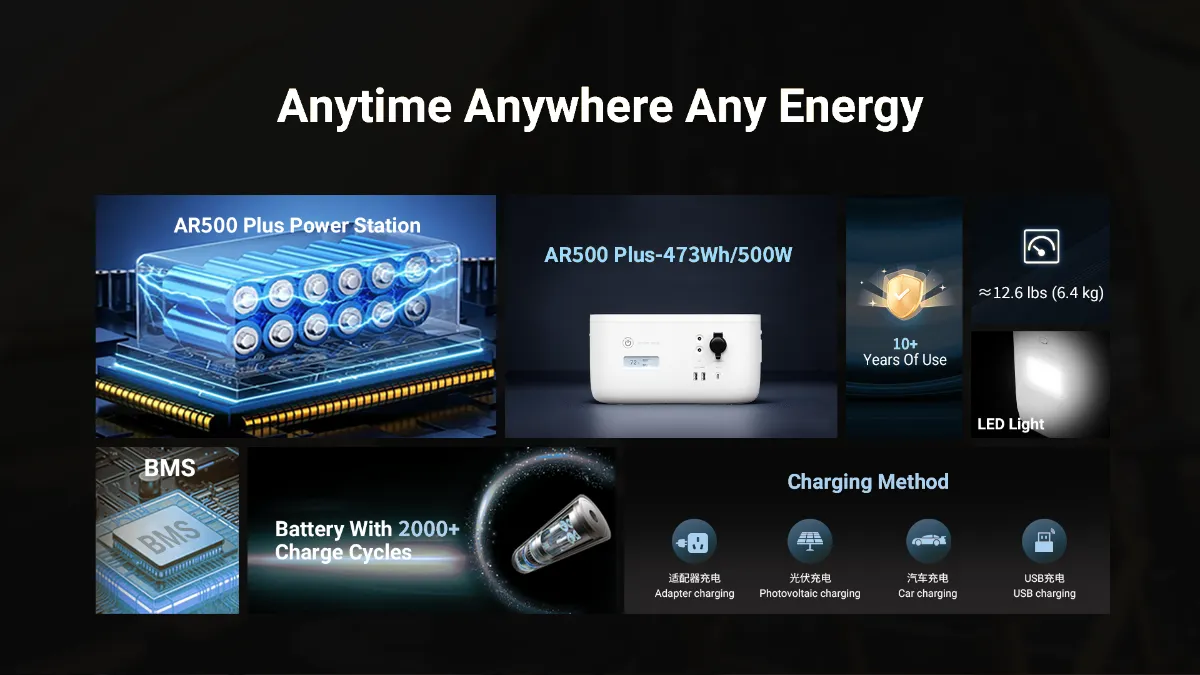

When using AC power for charging, it can be fully charged in just 1 hour at the fastest speed (for some fast-charge models). Additionally, it supports DC vehicle charging and solar panel charging, enabling multi-energy complementarity and combined charging, making it highly suitable for off-grid outdoor scenarios.
Yes, we have passed multiple mainstream international certifications, including CE, FCC, and RoHS, and comply with the UN38.3 transportation standard, ensuring safe and compliant export to global markets.
We provide OEM/ODM services and can customize the appearance, capacity, and functions according to customer requirements. The MOQ is typically negotiated based on the specific product type.
