| Parameter | Value |
| Battery | |
| Rated capacity (Wh) | 2016Wh |
| Battery type | LiFePO₄ |
| Charging | |
| Charging mode | Electric supply, solar panel, car charging |

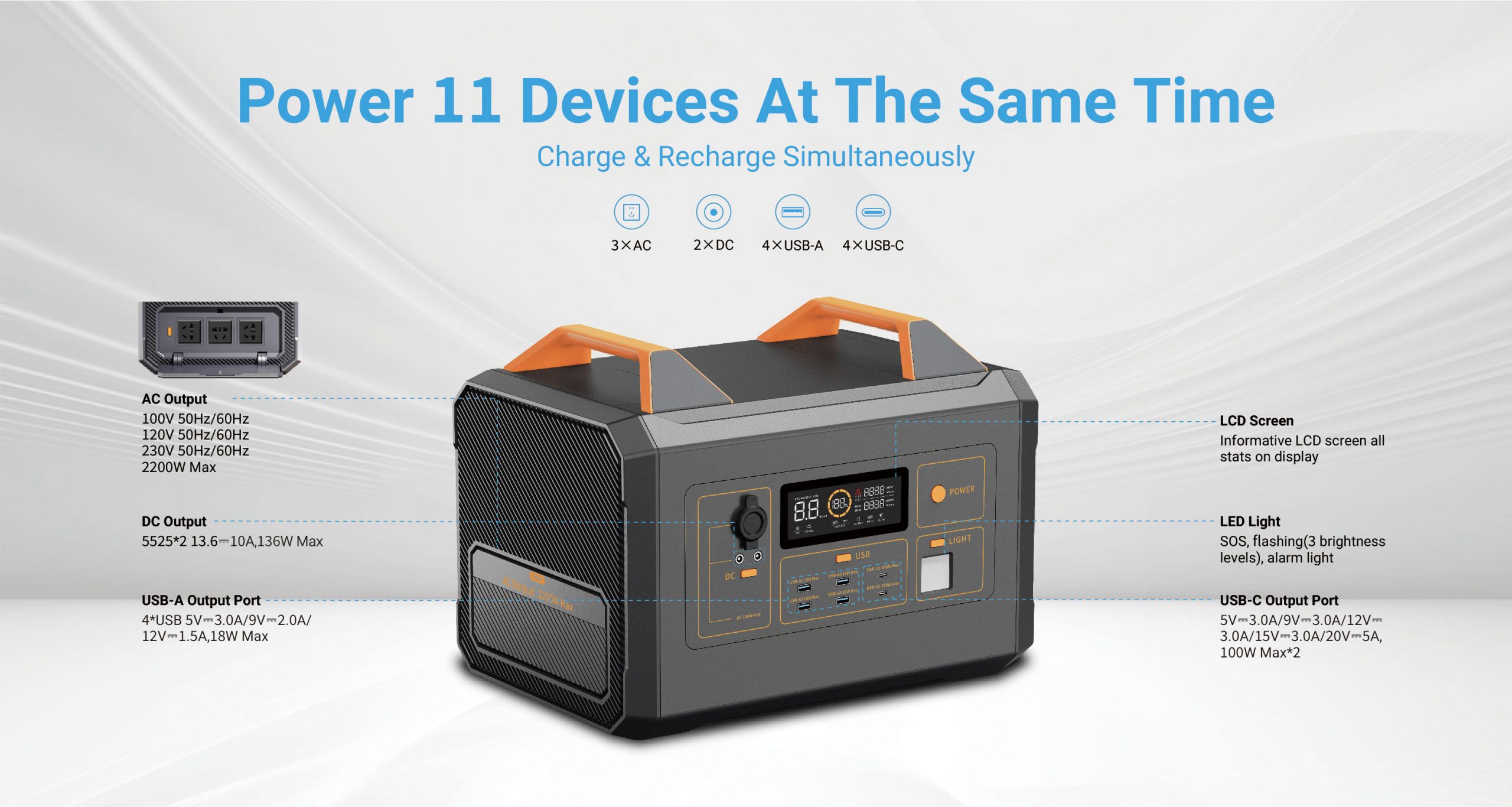

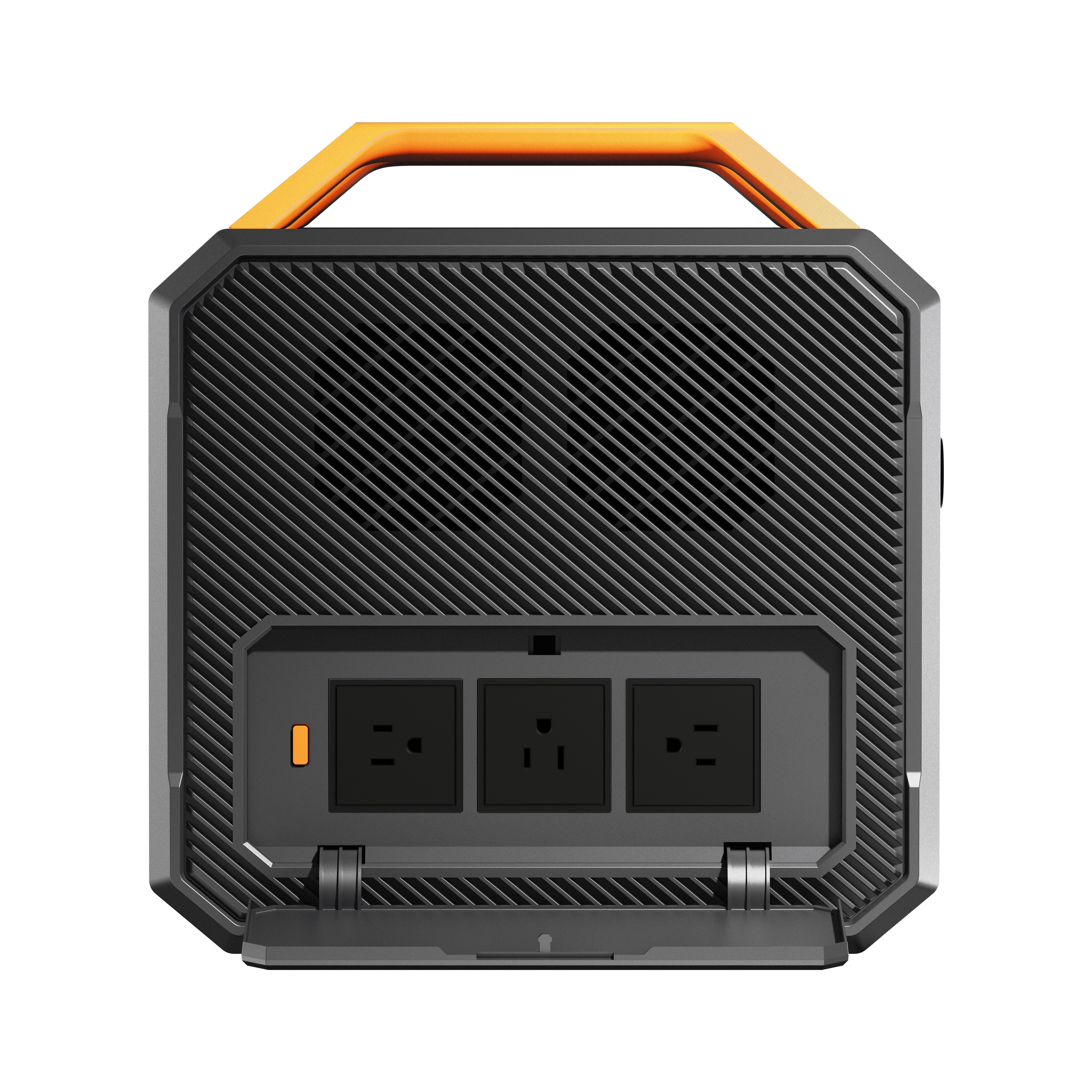

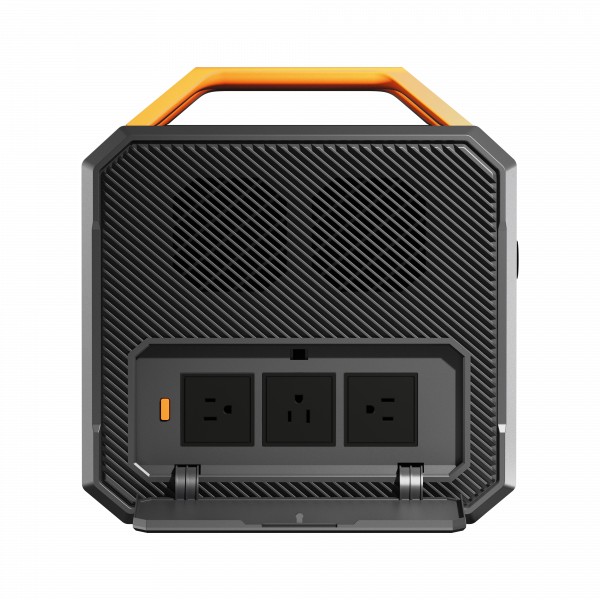

| AC output | |
| Maximum output power | 2200W |
| Output voltage | 230 V ± 5% |
| Output frequency | 50 Hz |
| Overload capacity | 1.1 times overload 15s |
| Cigarette lighter | |
| Maximum output current | 10A |
| Overcurrent protection point | 12A |
| DC – Jack | |
| Maximum output current | 10A |
| Number of interfaces | 1 group * 2 routes |
| USB | |
| Type and quantity of interfaces | Type-A×4, Type-C×2 |
| Output power | Type-A, Max. 18W |
| Type-C, Max. 100W | |
| LED lighting | |
| Output power | Low light mode 1.5W |
| Bright Light mode 3W | |
| SOS call | Support |
| Wireless charging | |
| Output power | / |
| Structural information | |

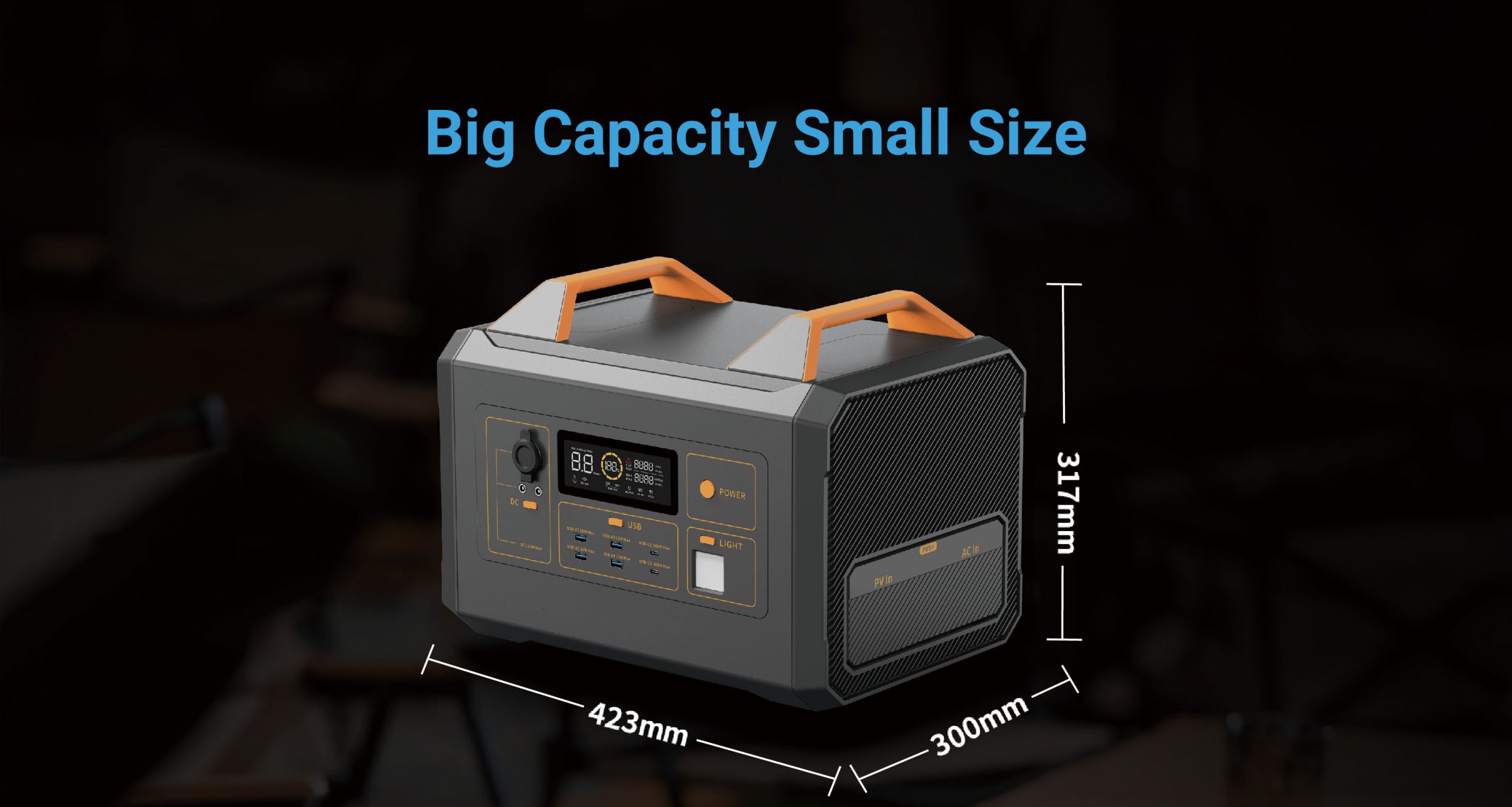

| Overall dimension | 423 × 300 × 317mm |
| Bare weight | 22kg |
| Class of protection | IP20 |
| Cooling mode | Air cooling |
| Environmental parameter | |
| Recommended operating temperature | 0 °C ~ 40 °C |
| Storage and transport temperature | Short-term: -20 °C ~ 40 °C |
| Long-term: 20 °C ~ 30 °C | |
| Relative humidity | 0~85% (no condensation) |
| Altitude | ≤ 2000 m |
| * The above data is based on controlled environment test records、 and actual use depends on external environment conditions. | |
