| Parameter | Value |
| Battery | |
| Rated capacity (Ah) | 50 |
| Nominal voltage (V) | 48 |
| Rated capacity (Wh) | 2400 |
| Cell type | LiFePO₄ |
| Operating voltage range type (V) | 43-54 |
| Maximum continuous charging current (A) | 40 |
| Maximum continuous discharging current (A) | 50 |
| Heating film | disposition |
| Casecade | Support up 2 parallel (4.8Kwh) |
| Number of cycles | 6000 |
| Structural information | |

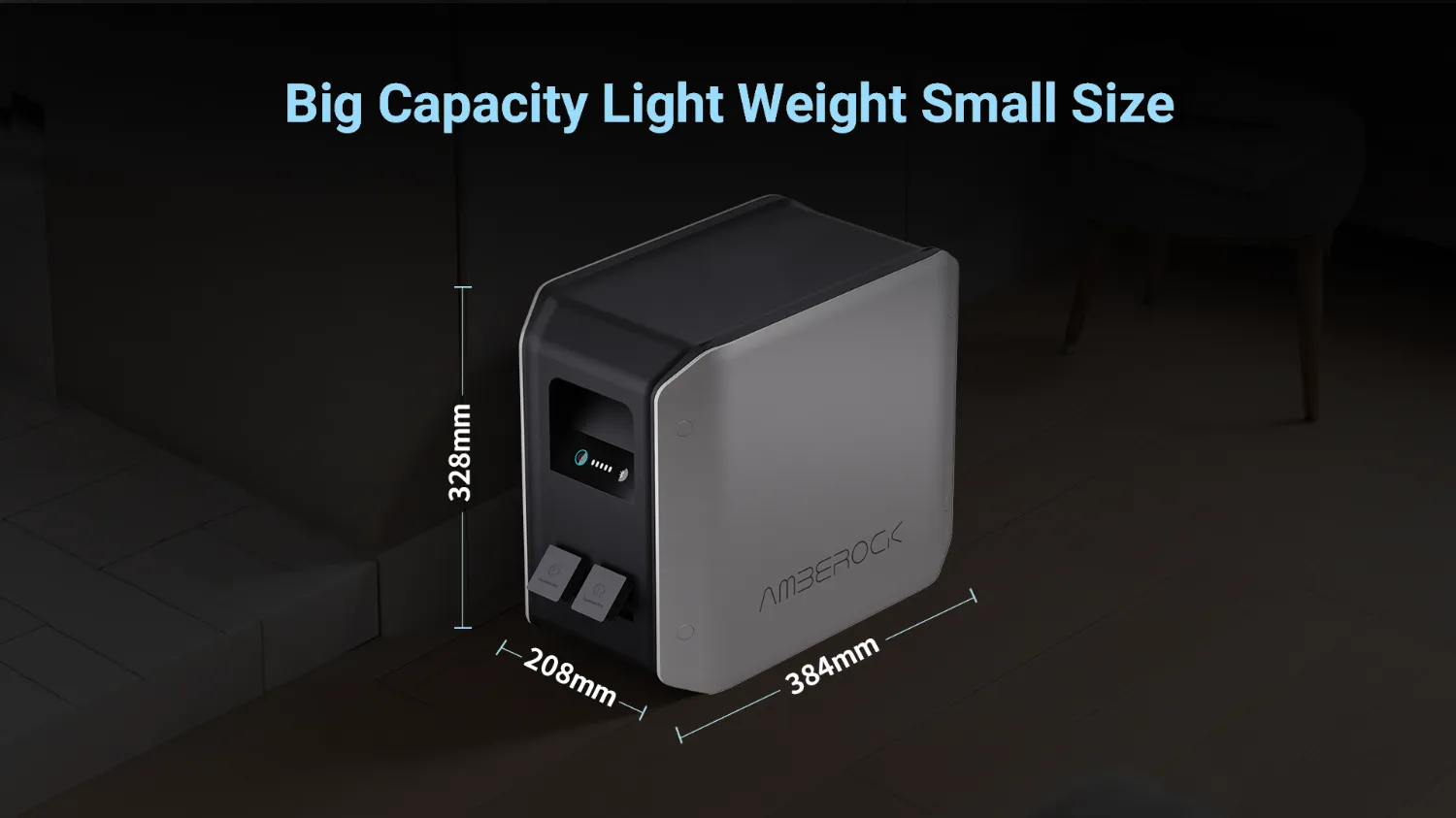

| Size (mm) | 384*208*328 |
| Weight (kg) | 23 |
| Class of protection | IP65 |
| Environment parameter | |
| Permissible operating environment temperature(°C) | -20~60 |
| Relative humidity | 5 to 95% @No condensation |
| Altitude | ≤2000m |
| Communication | |
| Communication interface | CAN/RS485 |
| Certification | |
| Certification | Rohs2.0/CE/CB/EMC/UN38.3 |
| * The above data is based on controlled environment test records、 and actual use depends on external environment conditions. | |
