| Parameter | Value |
| Battery | |
| Rated capacity | 50Ah |
| Nominal voltage | 48V |
| Rated capacity | 2400Wh |
| Cell type | LiFePO₄ |
| Operating voltage range type | 43-54V |
| Maximum continuous charging current | 50A |
| Maximum continuous discharging current | 50A |
| Low Temperature Heating Function | Yes |
| Cycle Count | 6000 |
| Structural | |

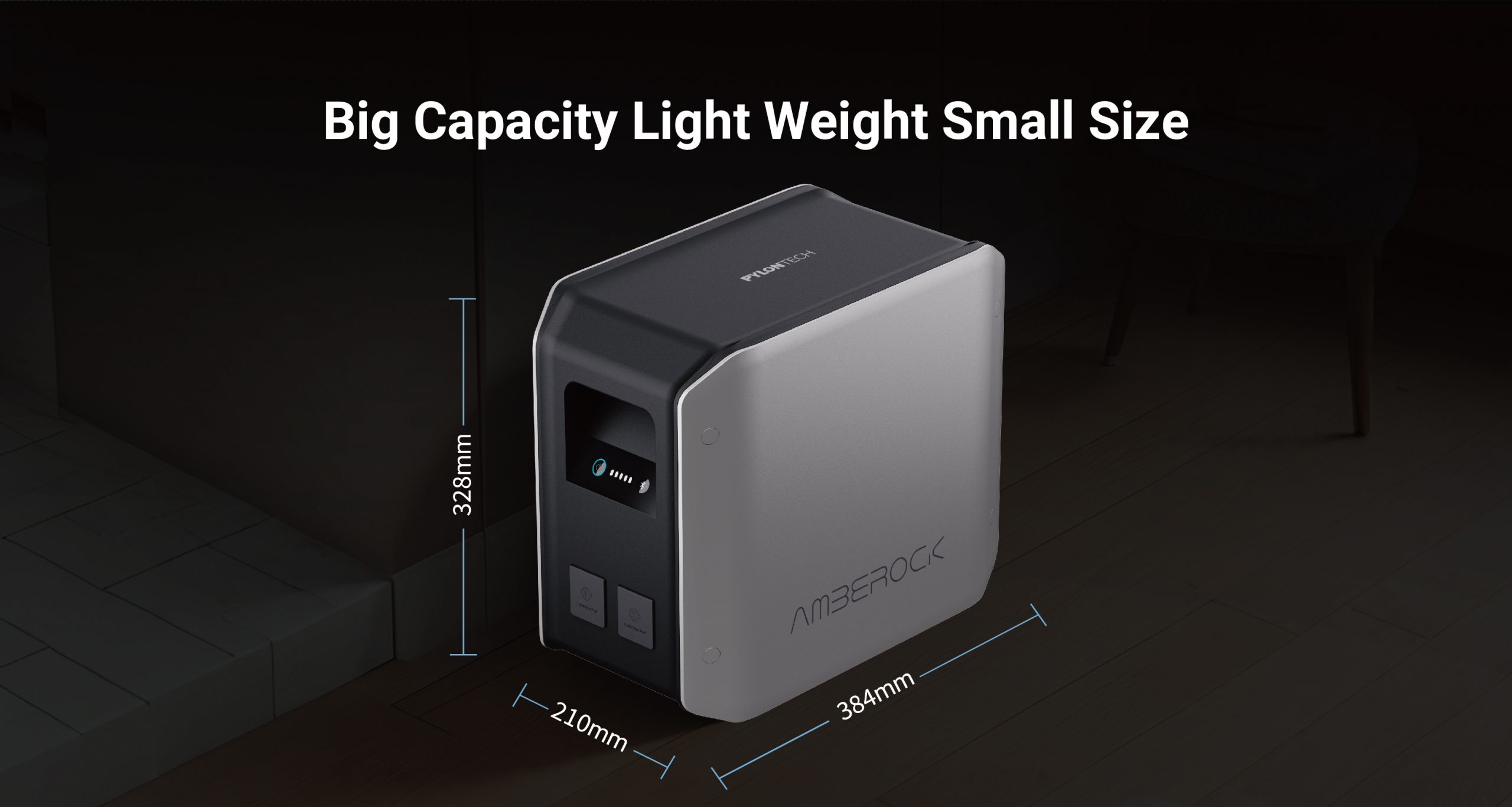

| Dimensions | 384*208*328mm(15.2*8.2*13in) |
| Weight | 21kg (46.3 lbs) |
| IP Rating | IP65 |
| Environment parameter | |
| Operating temperature | -20°C~60°℃(-4°F~140°F) |
| Relative humidity | 5 to 95% (No condensation) |
| Altitude | <2000m(6561.68ft) |
| Communication | |
| Communication method | CAN,RS485 |
| Certification | |
| Certification | RoHS2.0/CE/CB/EMC/UN38.3 |
| * The above data is based on controlled environment test records、 and actual use depends on external environment conditions. | |
