| Parameter | Value |
| Electrical parameters | |
| Nominal voltage | 12.8VDC |
| Nominal capacity | 100 Ah |
| Internal resistance | <20mΩ |
| Charge/discharge efficiency | 99% |
| Self-discharge | ≤3%/month |
| Maximum series-parallel capability | 4S4P |
| Cycle life | >4500 |
| Maximum sustained discharge current | 100 A |
| Peak discharge current | 200 A@30s |
| Maximum sustained charge current | 100 A |
| Recommended sustained charge current | ≤50A |
| Recommended charge voltage | 14 V~14.4 V |
| Environmental parameters | |
| Recommended storage temperature | 50°F~95°F (10°C~35°C) |
| Storage temperature range | -40°F~140°F (-40°C~60°C) |
| Working Temperature | -4°F~140°F (-20°C~60°C) |
| *Battery does not support charging at temperature below 0°C. | |
| Altitude | <4000m |
| Relative Humidity | 5%~95% (no condensation) |
| Other | |
| Certifications | UL1973, IEC62619, FCC, CE, Bluetooth SIG, TELEC, UKCA |
| Communication | BLE 5.0 |
| App | Pylontech Auto |
| Mechanical Parameters | |

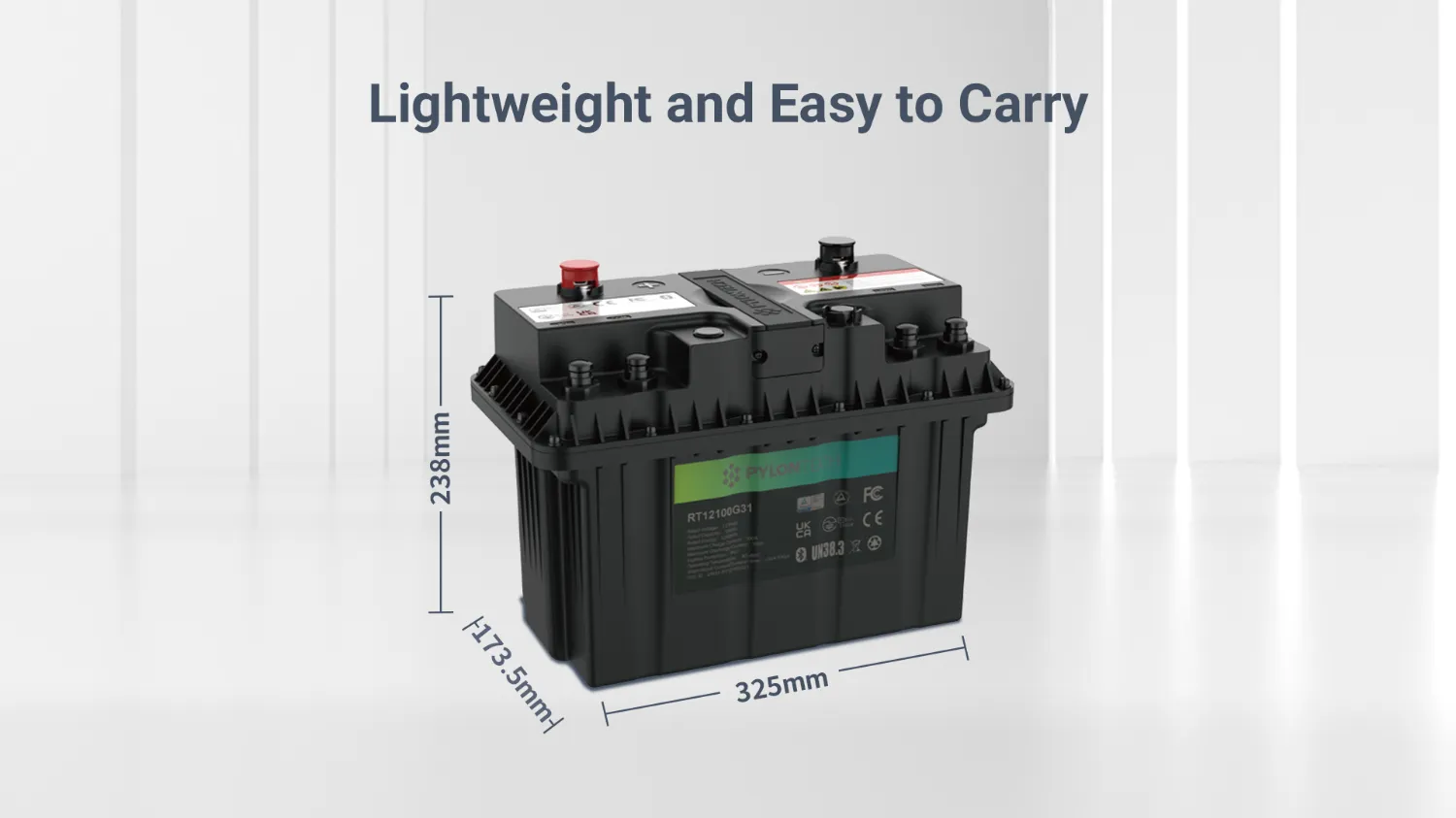

| Dimensions | 12.8×6.83×9.37 in (325×173.5×238 mm) |
| Weight | Approx. 26.46 lbs (12 Kg) |
| Terminal Type | M8×1.25×14mm |
| Terminal Torque | 8±1Nm |
| Case Material | PC |
| Protection Rating | IP67 |
| Battery Type | LiFePO₄ |
