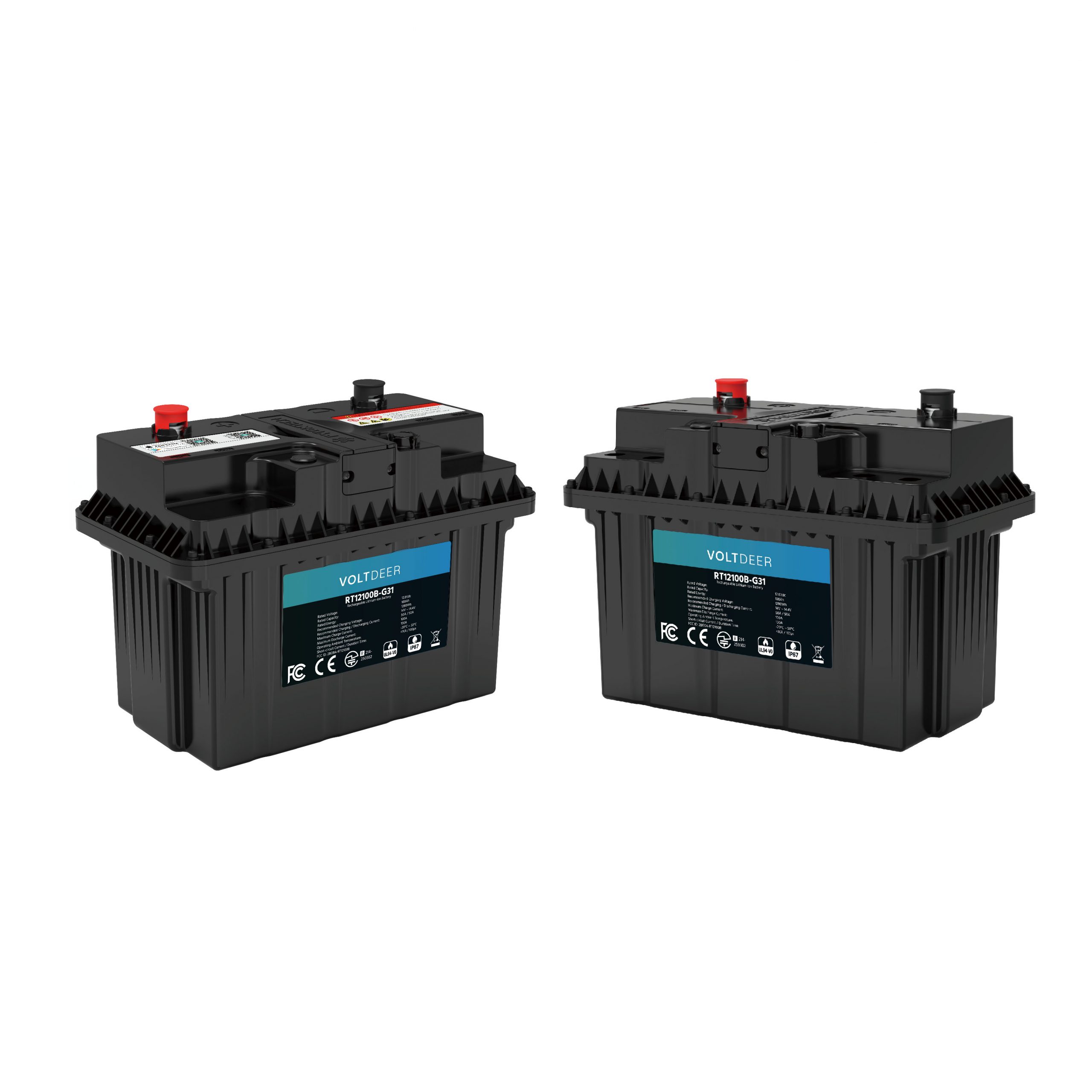

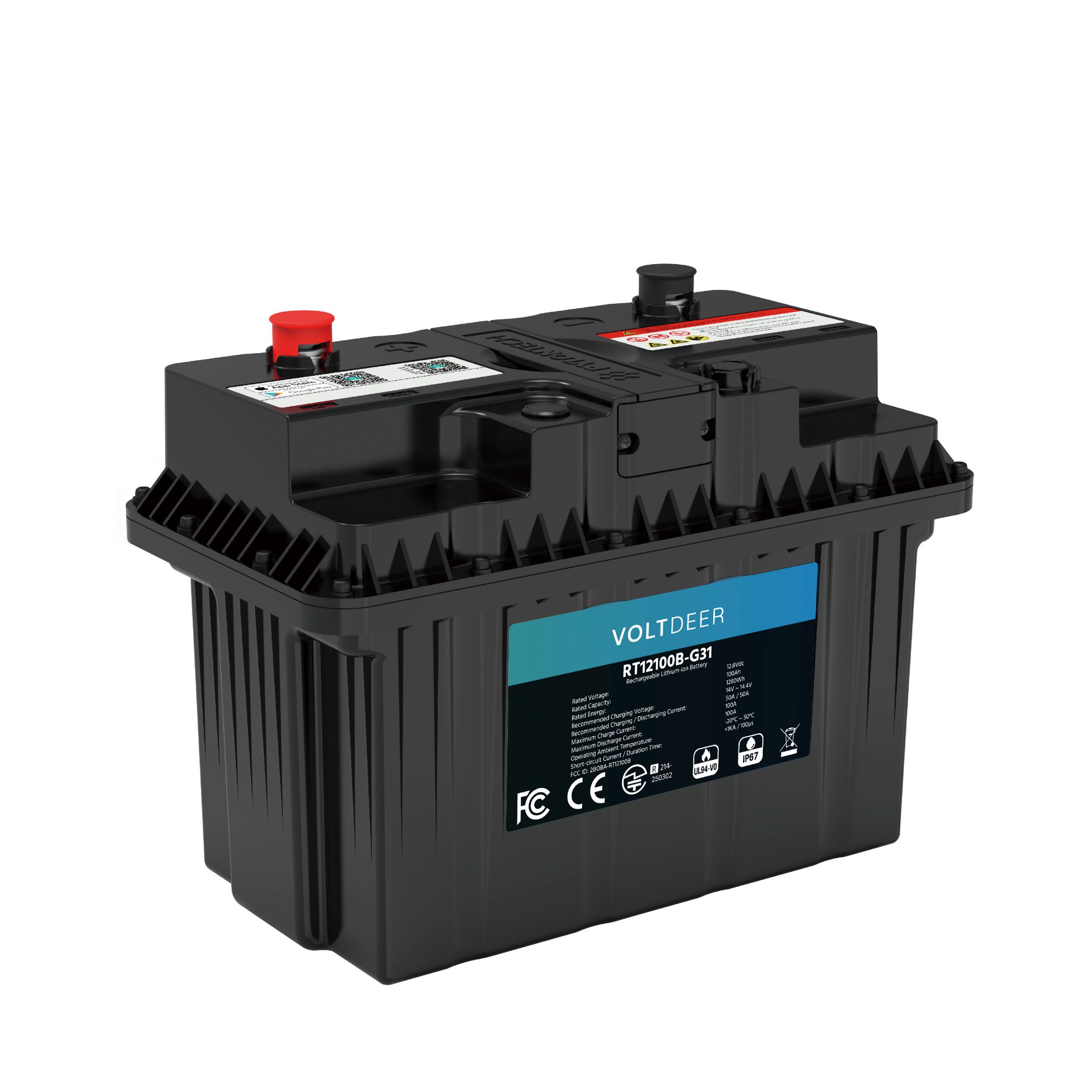

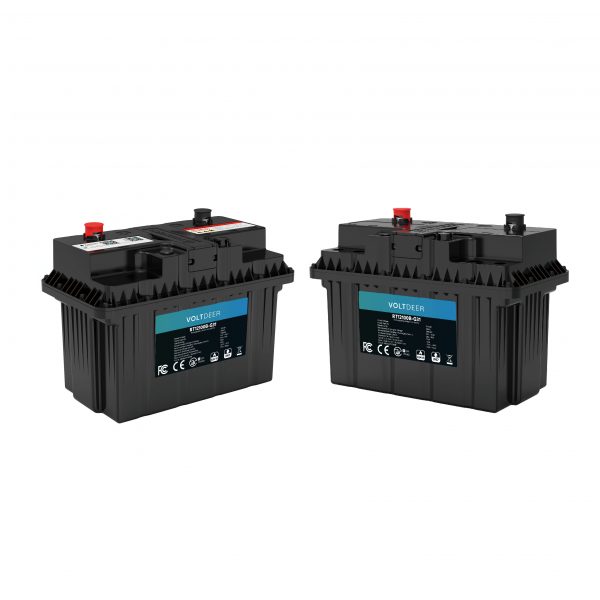

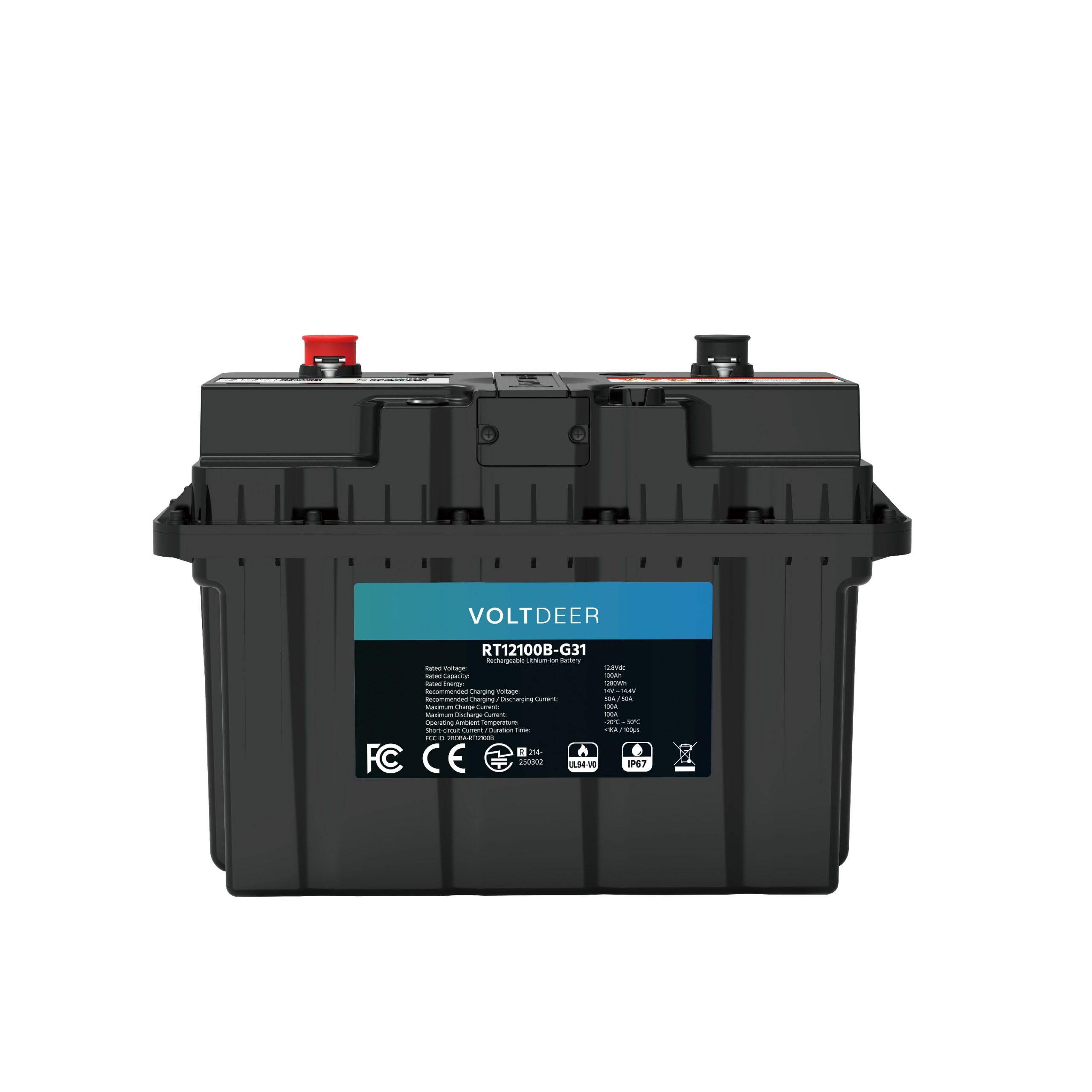

RV battery
| parameter | value |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Maximum Series/Parallel Capacity | 4S4P |
| Cycle Life | 4000 |
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 200A/30S |
| Maximum Continuous Charge Current | 100A |
| Recommended Continuous Charge Current | <50A |
| Recommended Charge Voltage | 14-14.4V |
| Recommended Storage Temperature | 10°C~35°C（50°F~95°F） |
| Operating Temperature | -20°C~50°C（-4°F~122°F） |
| Altitude | <4000 （<13123.36 ft） |
| Relative Humidity | 5%-95%（no condensation） |
| Certification | IEC62619、CE、FCC、TELEC、UN38.3 |
| Communications | Bluetooth |
| Low Temperature Heating Function | no |
| APP | Pylontech Auto |

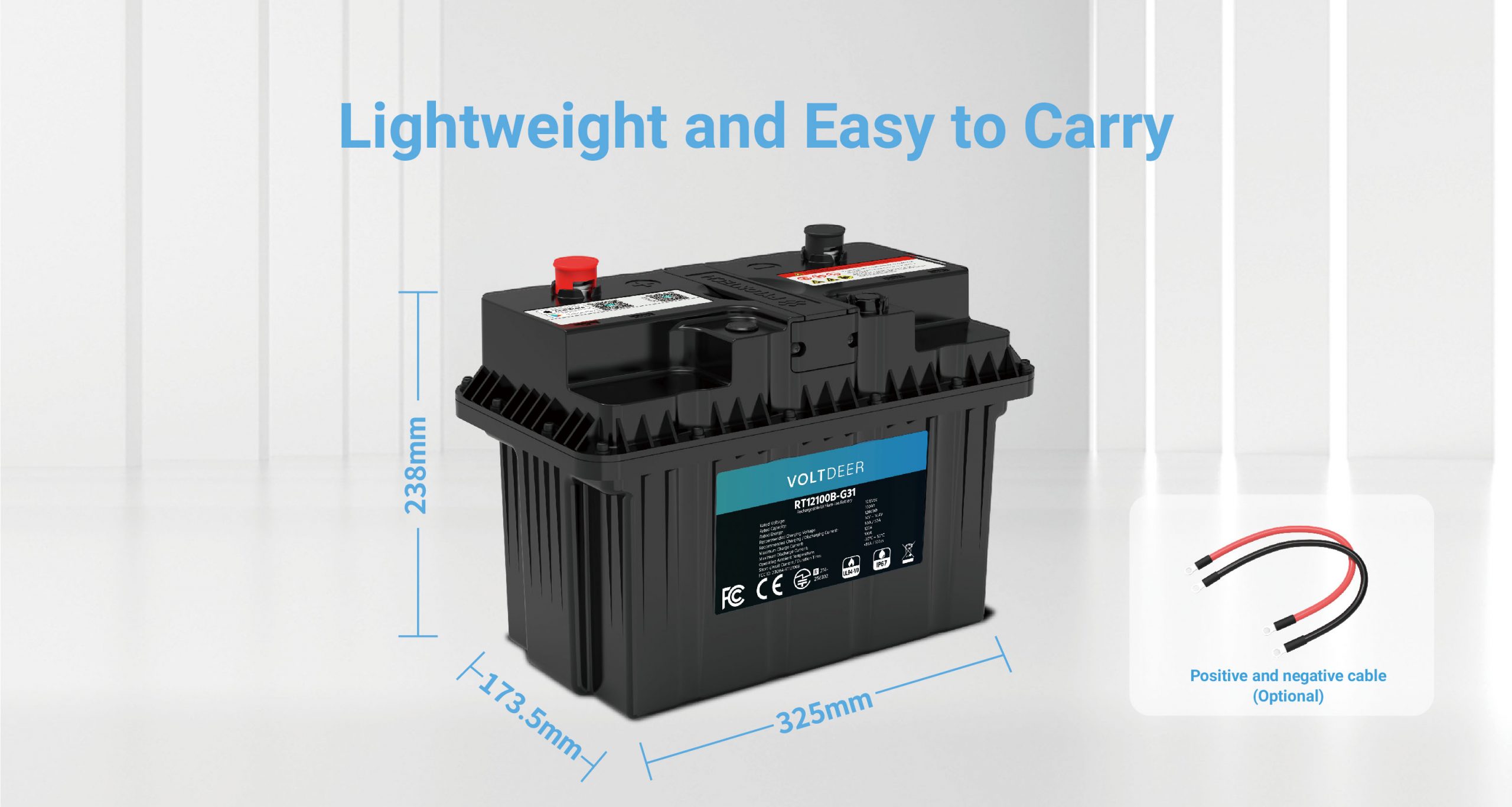

| Dimensions(L*W*H) | 325*173.5*238mm（12.8*6.9*9.4in） |
| Weight | 11.3 Kg（25lbs） |
| Terminal Type | M8*1.25*14mm |
| Terminal Torque | 9±1Nm |
| Casing Material | PC |
| IP Rating | IP67 |
| Battery Type | LiFePO4 |
