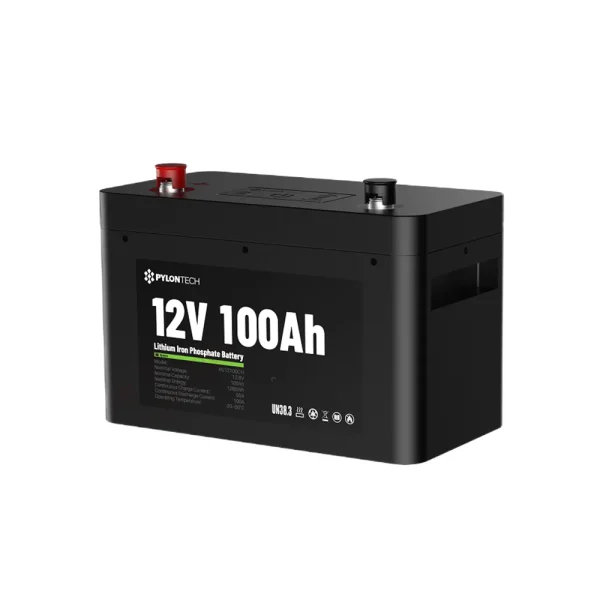

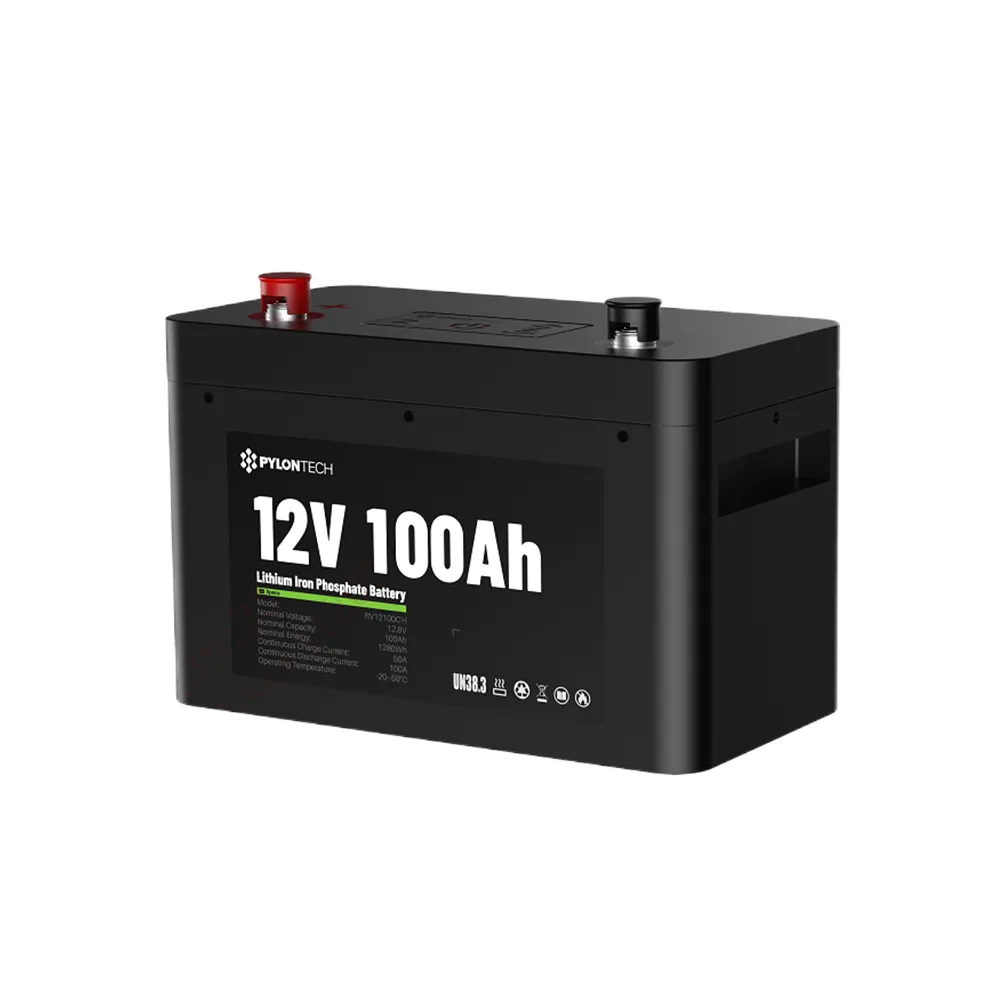

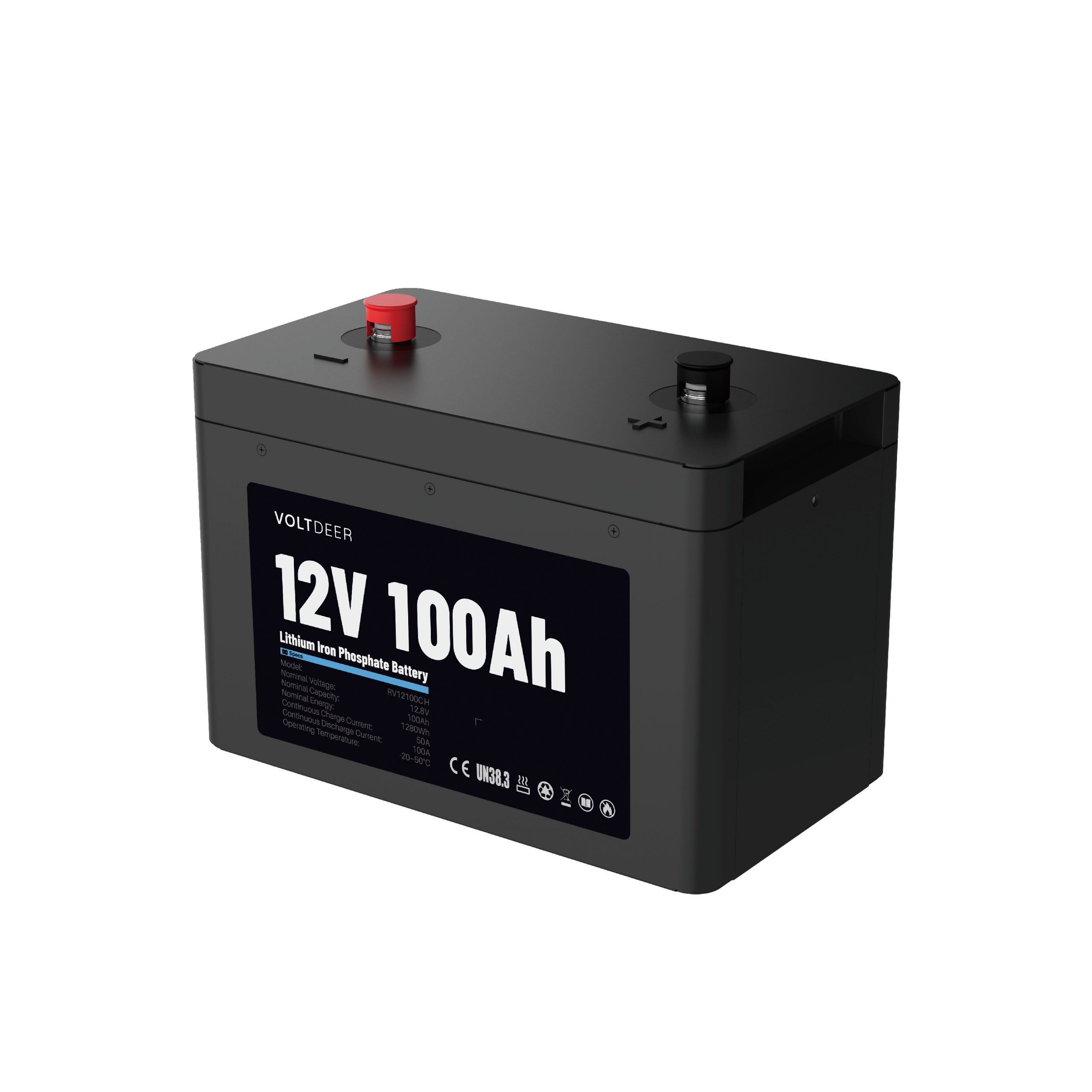

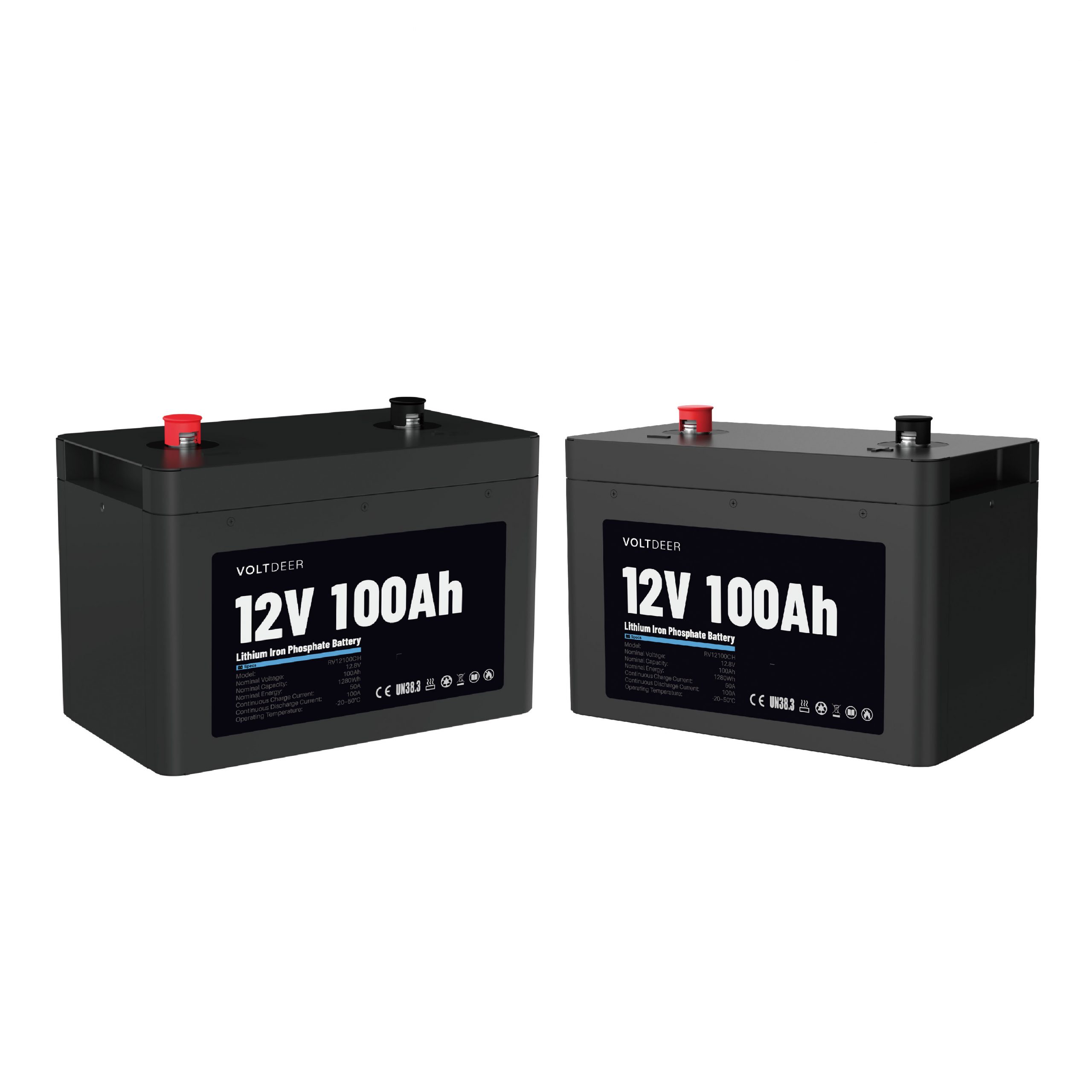

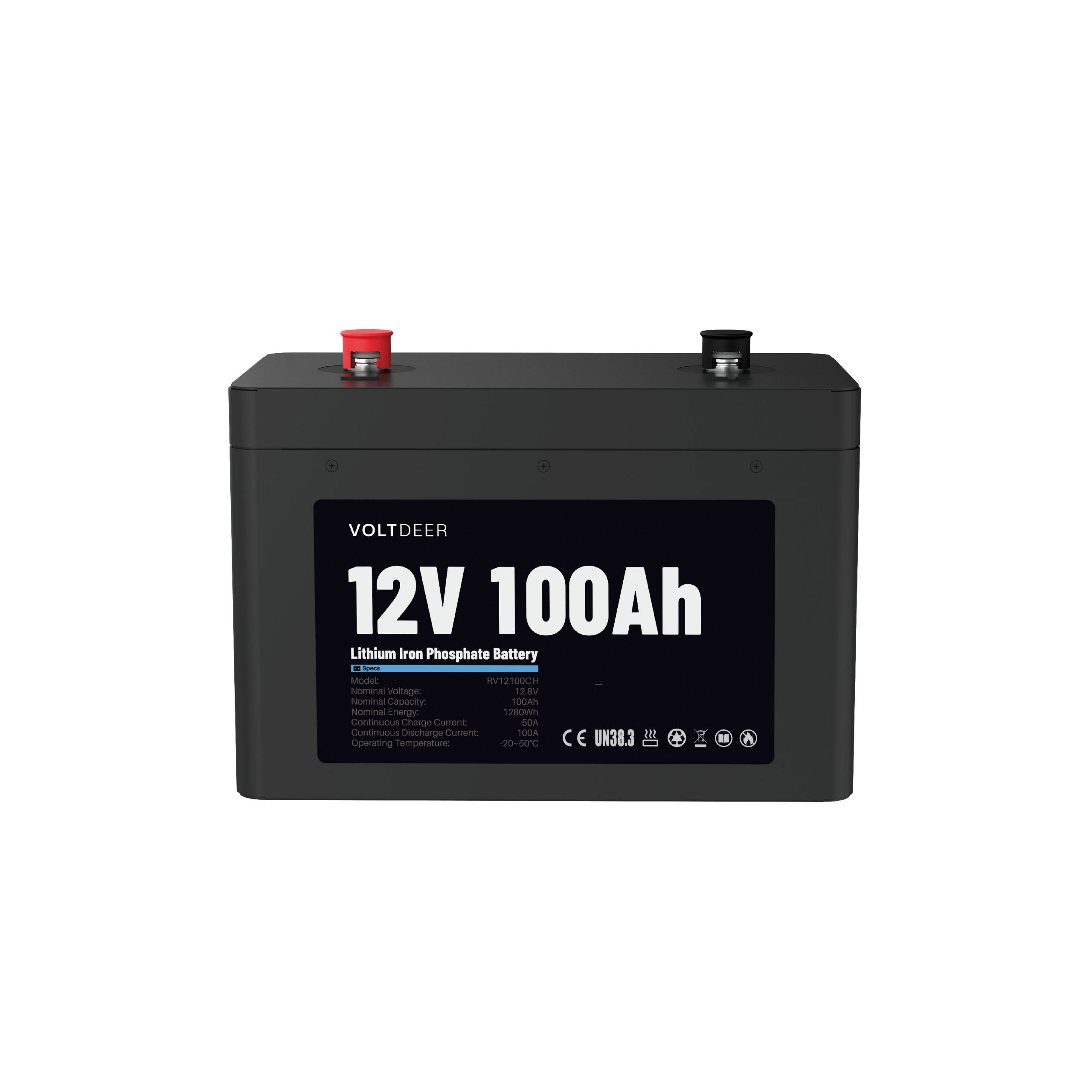

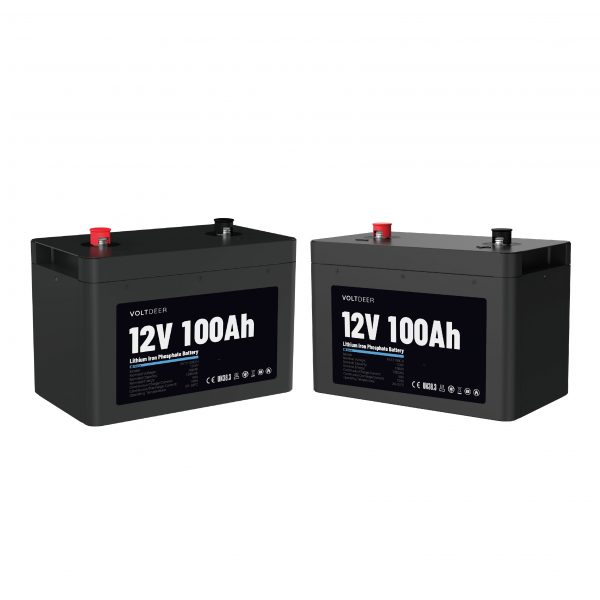

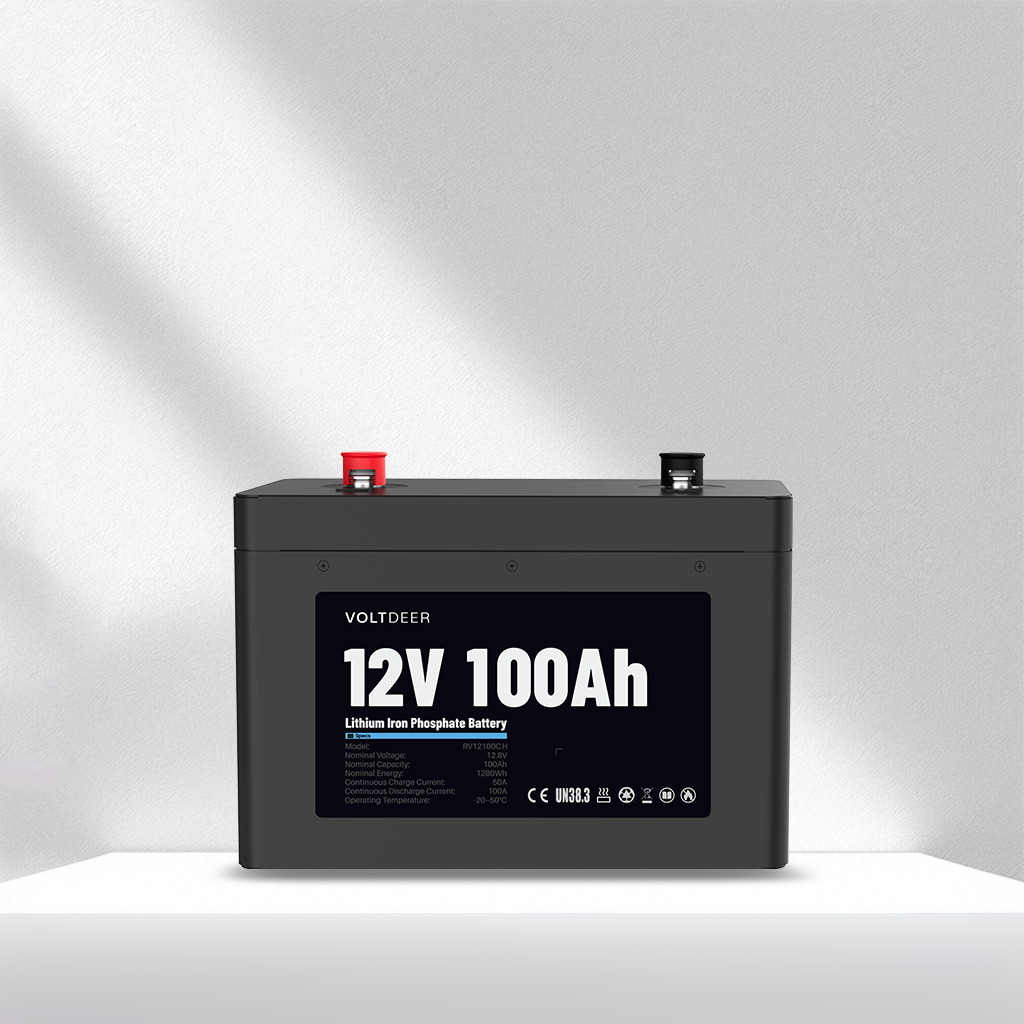

RV Battery
| Parameter | Value |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Maximum Series/Parallel Capacity | 8P |
| Cycle Life | 4000 |
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 200A/10S |
| Maximum Continuous Charge Current | 100A |
| Recommended Continuous Charge Current | <50A |
| Recommended Charge Voltage | 14-14.4V |
| Recommended Storage Temperature | 10°C~35°C(50℉~95℉) |
| Operating Temperature | -20°C~50°C(-4°F~122°F) |
| Altitude | <4000m(<13123.36 ft) |
| Relative Humidity | 5%-95%(no condensation) |

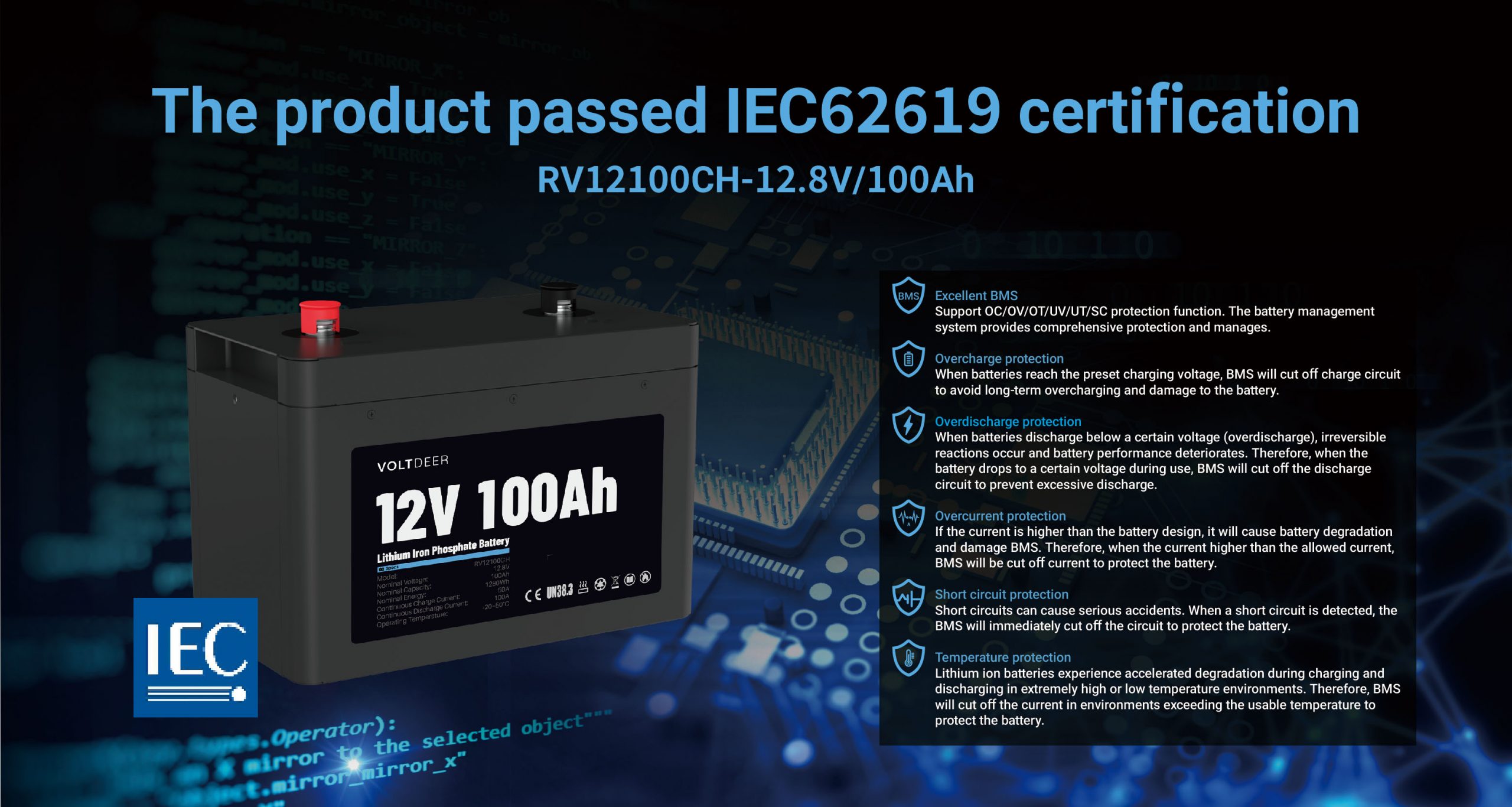

| Certification | IEC62619,CE, UN38.3 |
| Communications | / |
| Low Temperature Heating Function | Yes |
| APP | / |

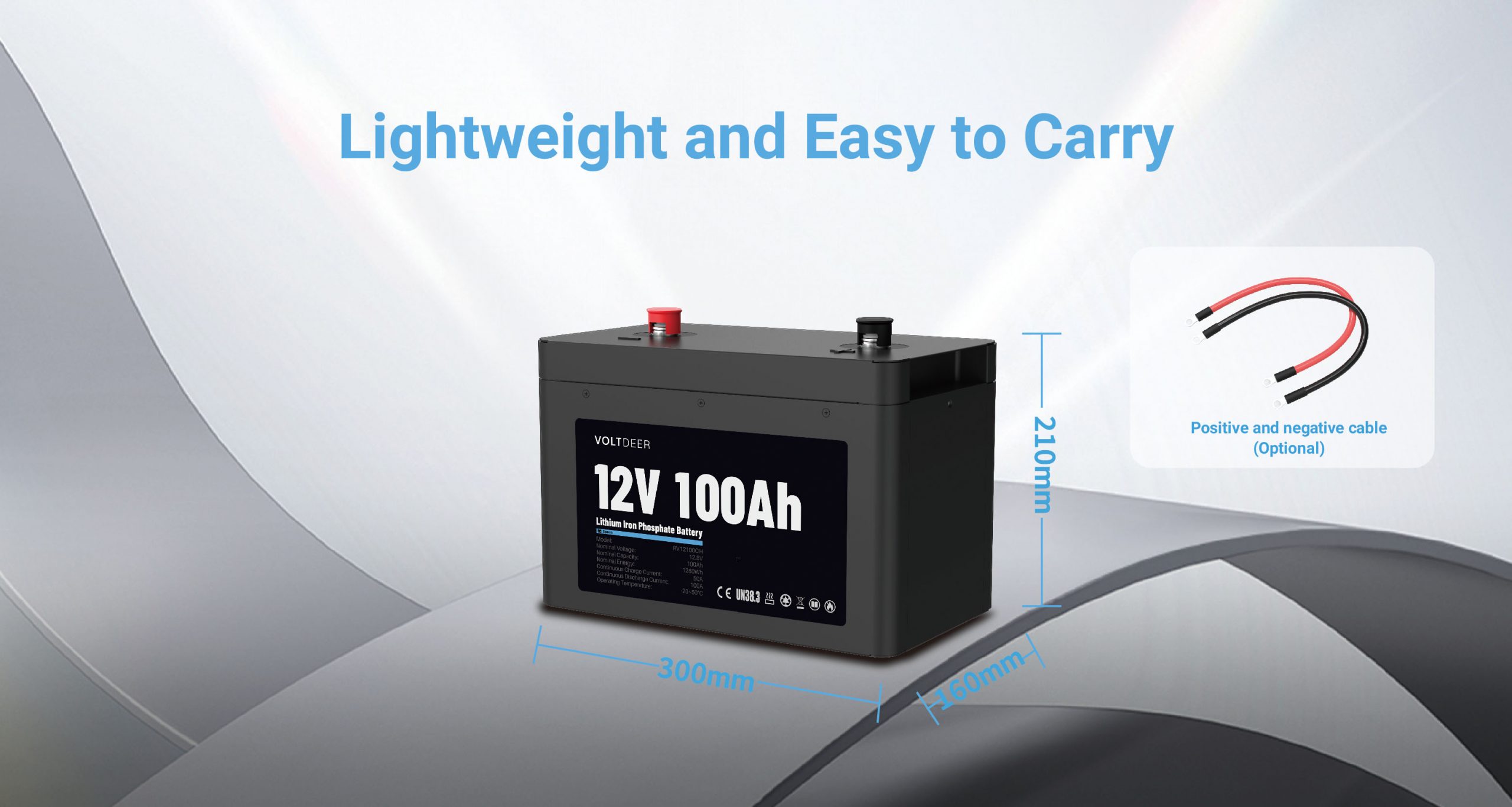

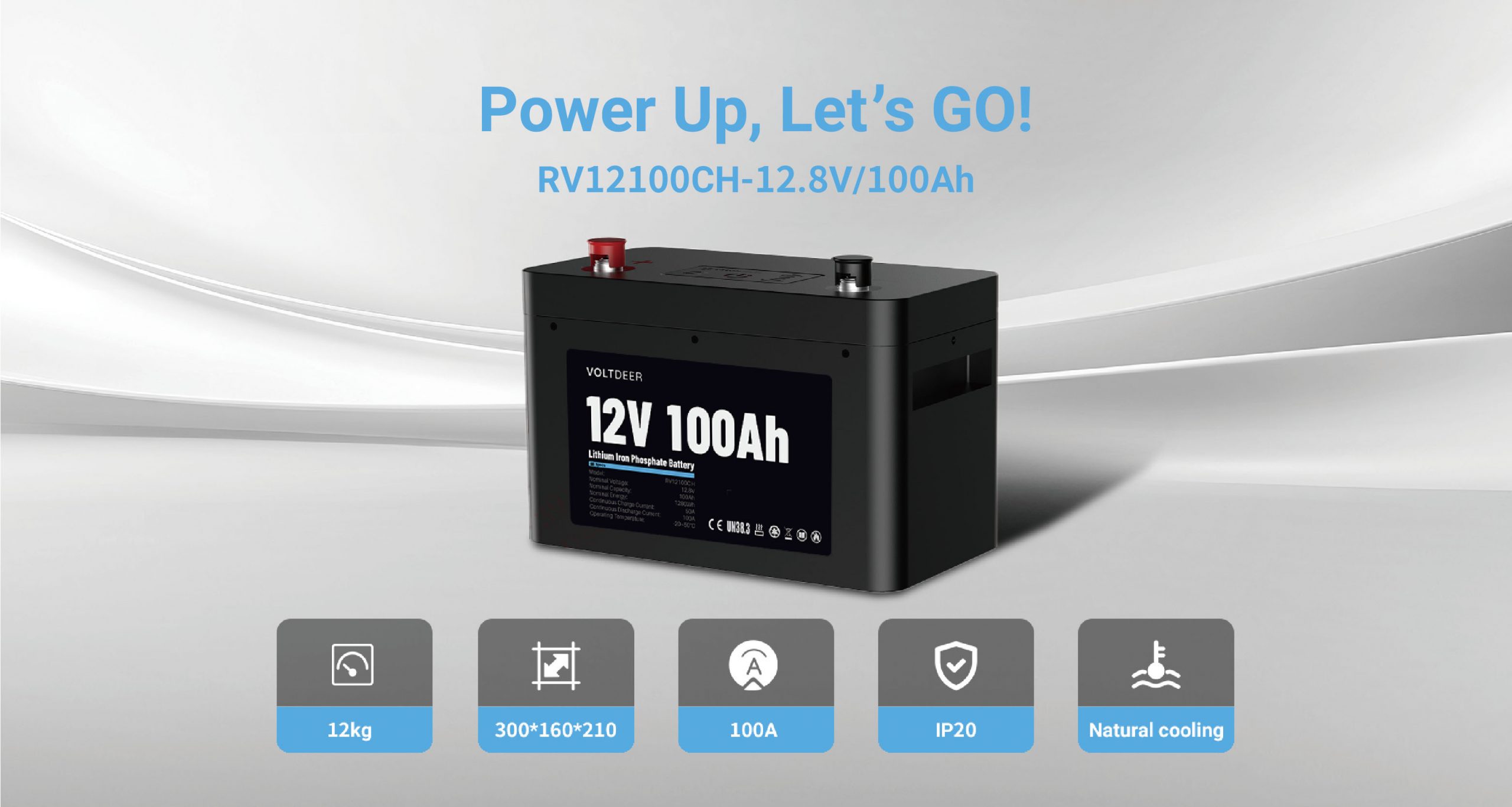

| Dimensions(L*W*H) | 300*160*210mm(11.9*6.3*8.in) |

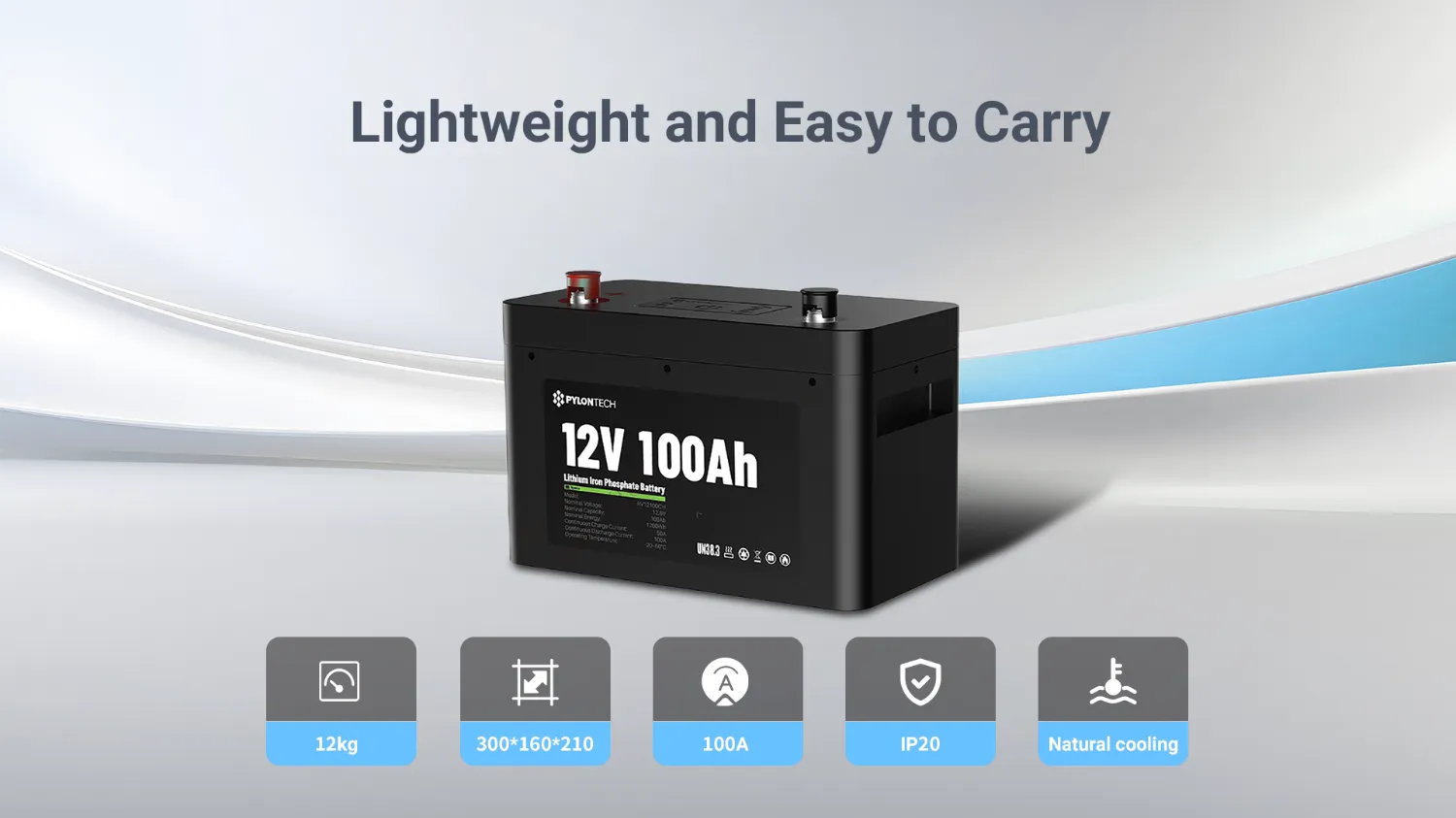

| Weight | 12kg (26.5lbs) |
| Terminal Type | M8*1.25*14mm |
| Terminal Torque | 8±1Nm |
| Casing Material | Metal |
| IP Rating | IP20 |
| Battery Type | LiFePO4 |
