| Parameter | Value |
| Electrical parameters | |
| Nominal voltage | 12.8VDC |
| Nominal capacity | 200 Ah |
| Internal resistance | <10mΩ |
| Charge/discharge efficiency | 99% |
| Self-discharge | ≤3%/month |

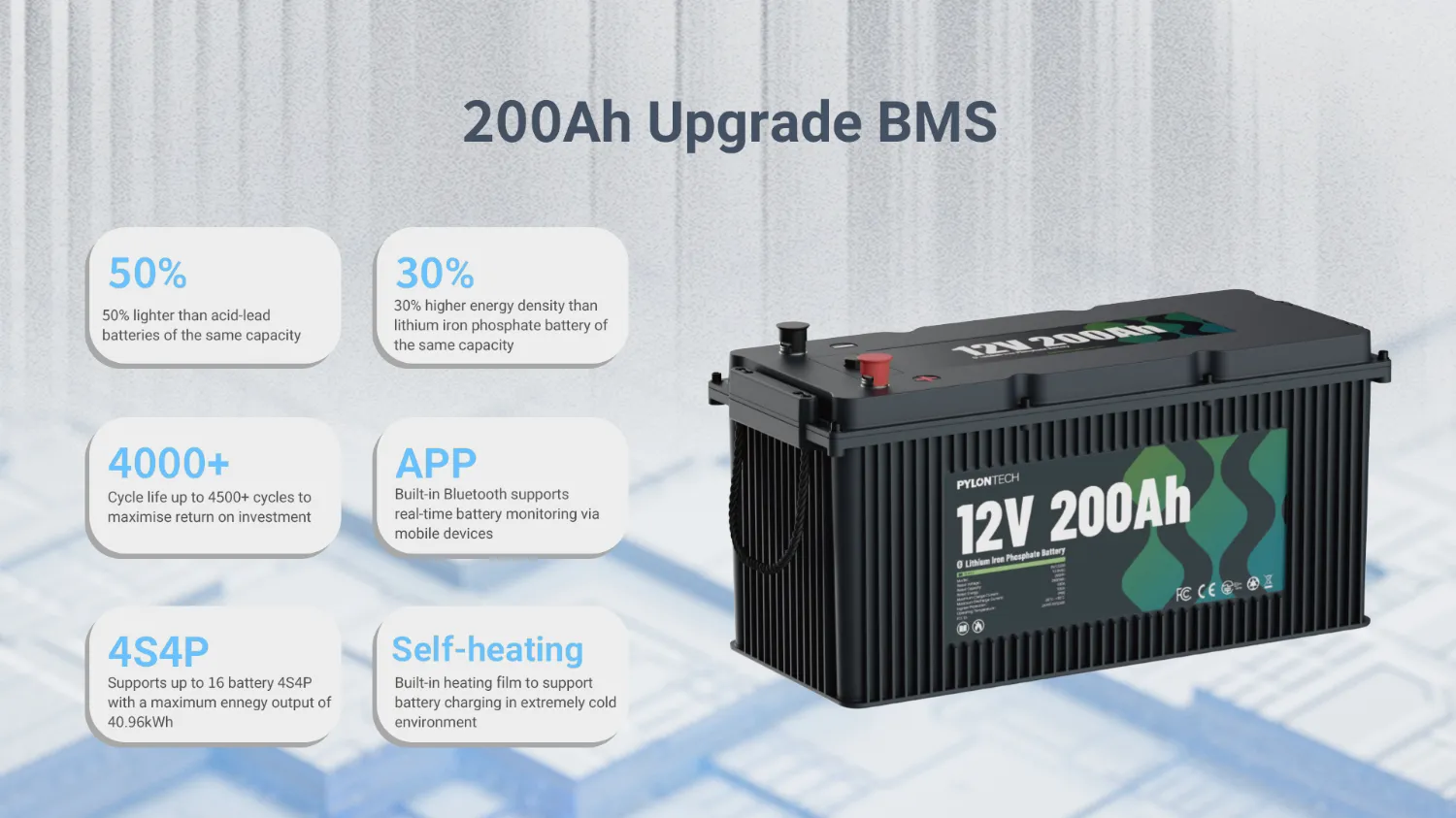

| Maximum series-parallel capability | 4S4P |

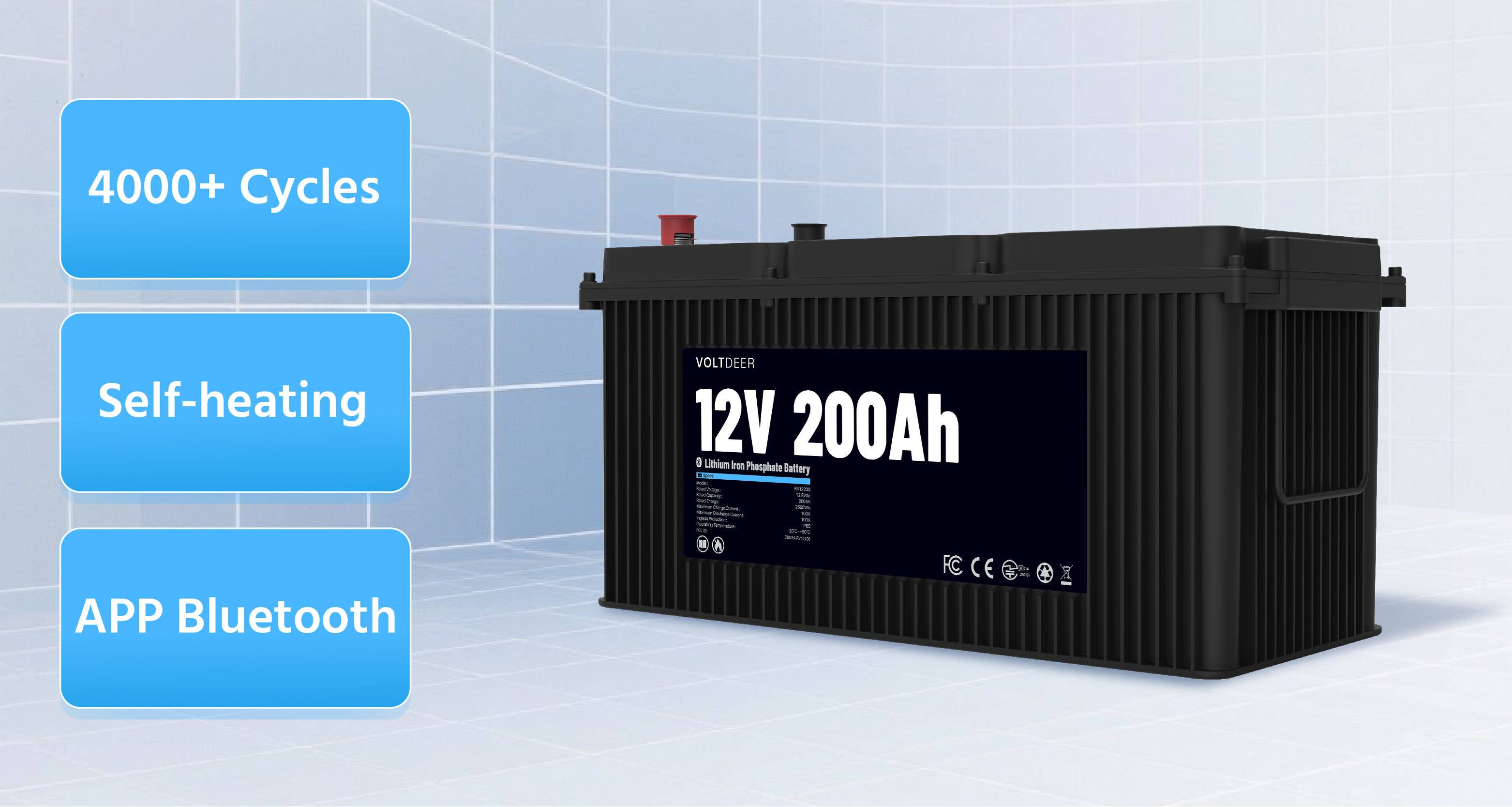

| Cycle life | >4000 times |
| Maximum sustained discharge current | 100 A |
| Peak discharge current | 200 A@5s |
| Maximum sustained charge current | 100 A |
| Recommended charge voltage | 14 V~14.4 V |
| Environmental parameters | |
| Discharge temperature | -20°C~60°C |
| Charging temperature | 0°C~55°C |
| Storage temperature | -40°C~60°C |
| Working Temperature | -20°C~50°C |
| *When the temperature is lower than 0°C, please connect the charger to turn on the heating if charging is required. When the temperature of the battery cell is heated above -20°C~50°C, the battery starts to charge. | |
| Altitude | <4000m |
| Relative Humidity | 5%~95% (no condensation) |
| Other | |
| Certifications | UL1973, IEC62619, FCC, CE, Bluetooth SIG, TELEC, UKCA |
| Communication | Bluetooth SIG |
| Heating film | BLE 5.0 |
| App | Pylontech Auto |
| Mechanical Parameters | |

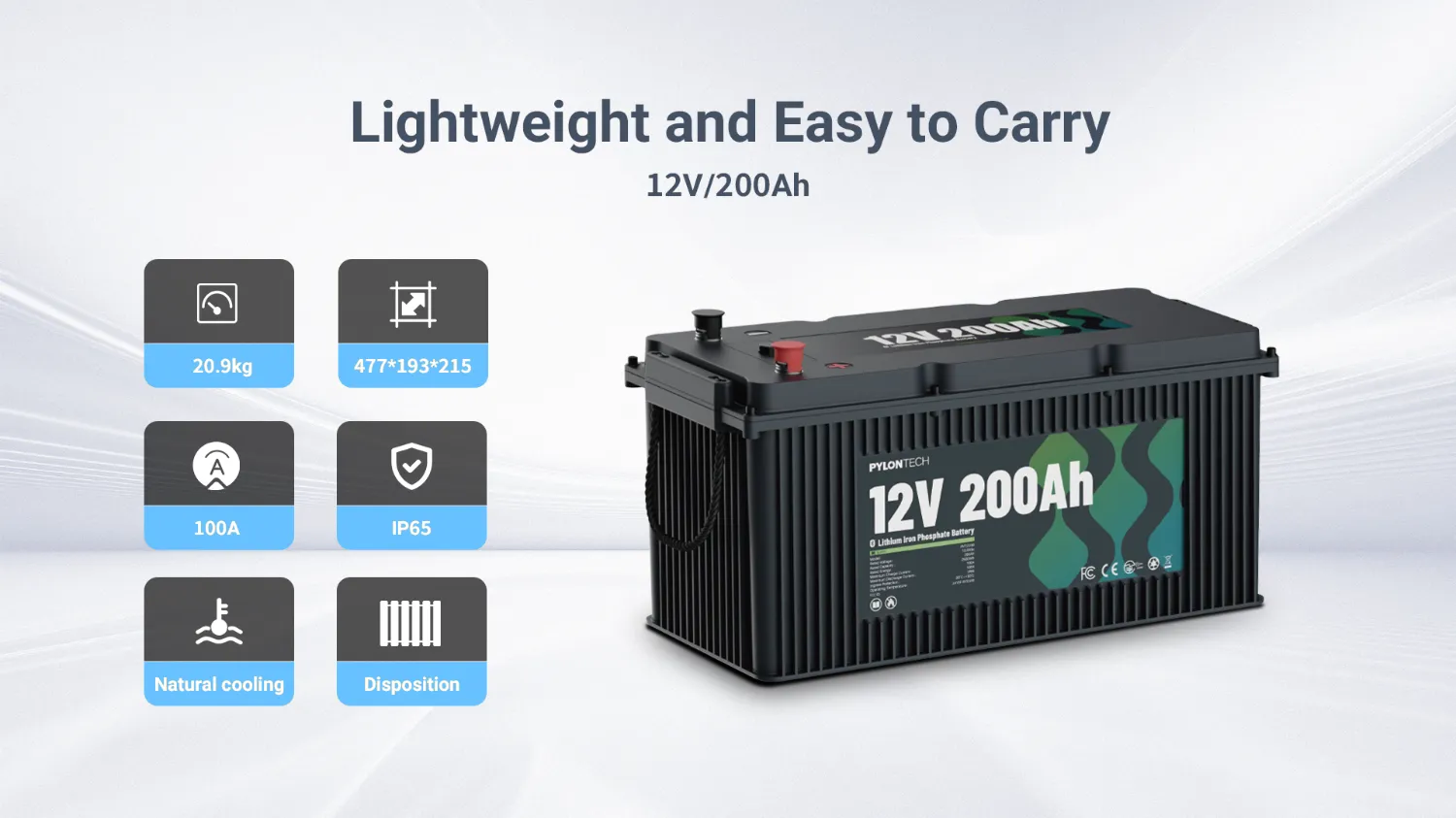

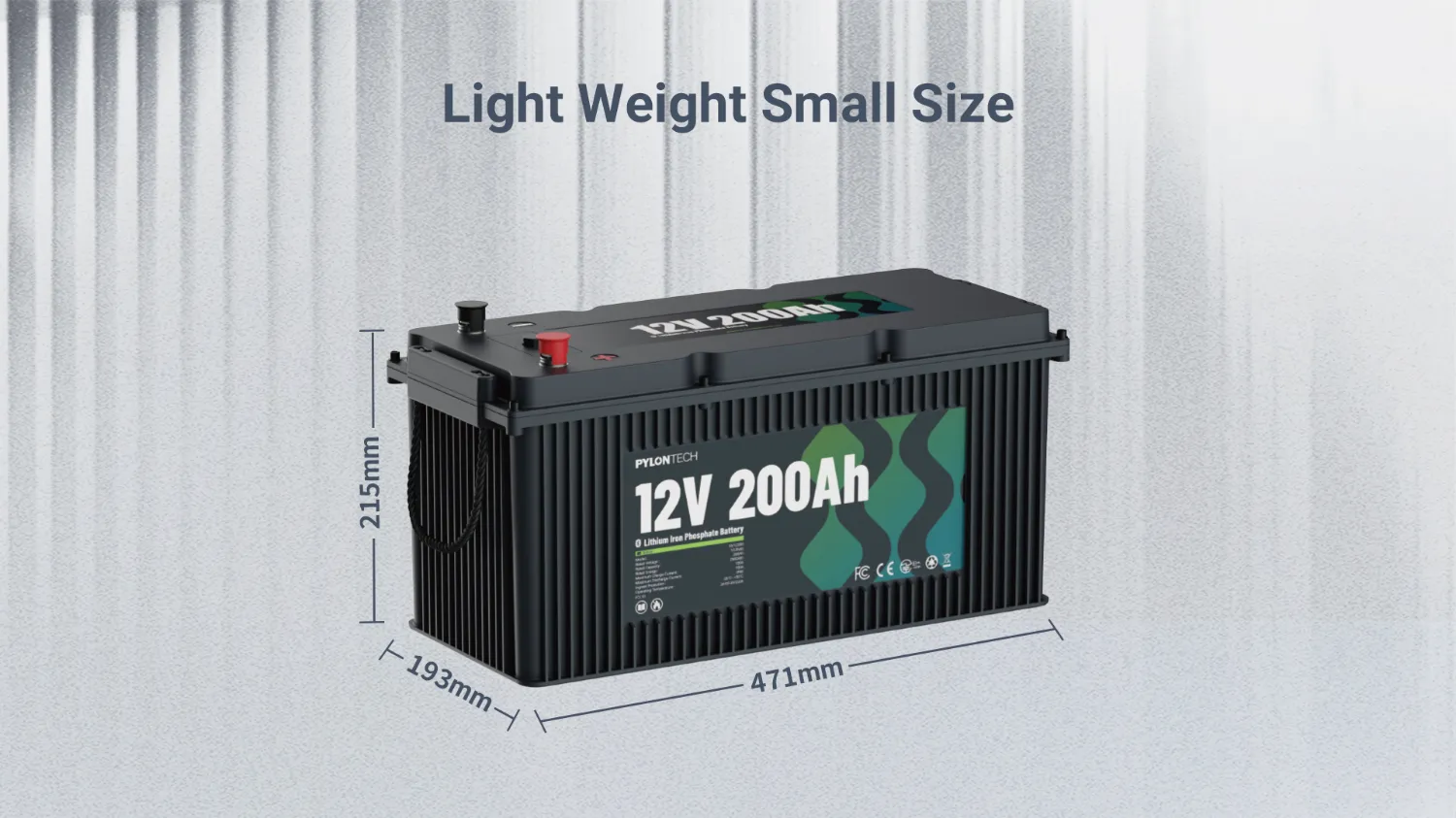

| Dimensions | 459 X 190 X 215 mm |
| Weight | Approx. 20.9 Kg |
| Terminal Type | M8 X 1.25 X 14mm |
| Terminal Torque | 9 ± 1Nm |
| Case Material | PC |

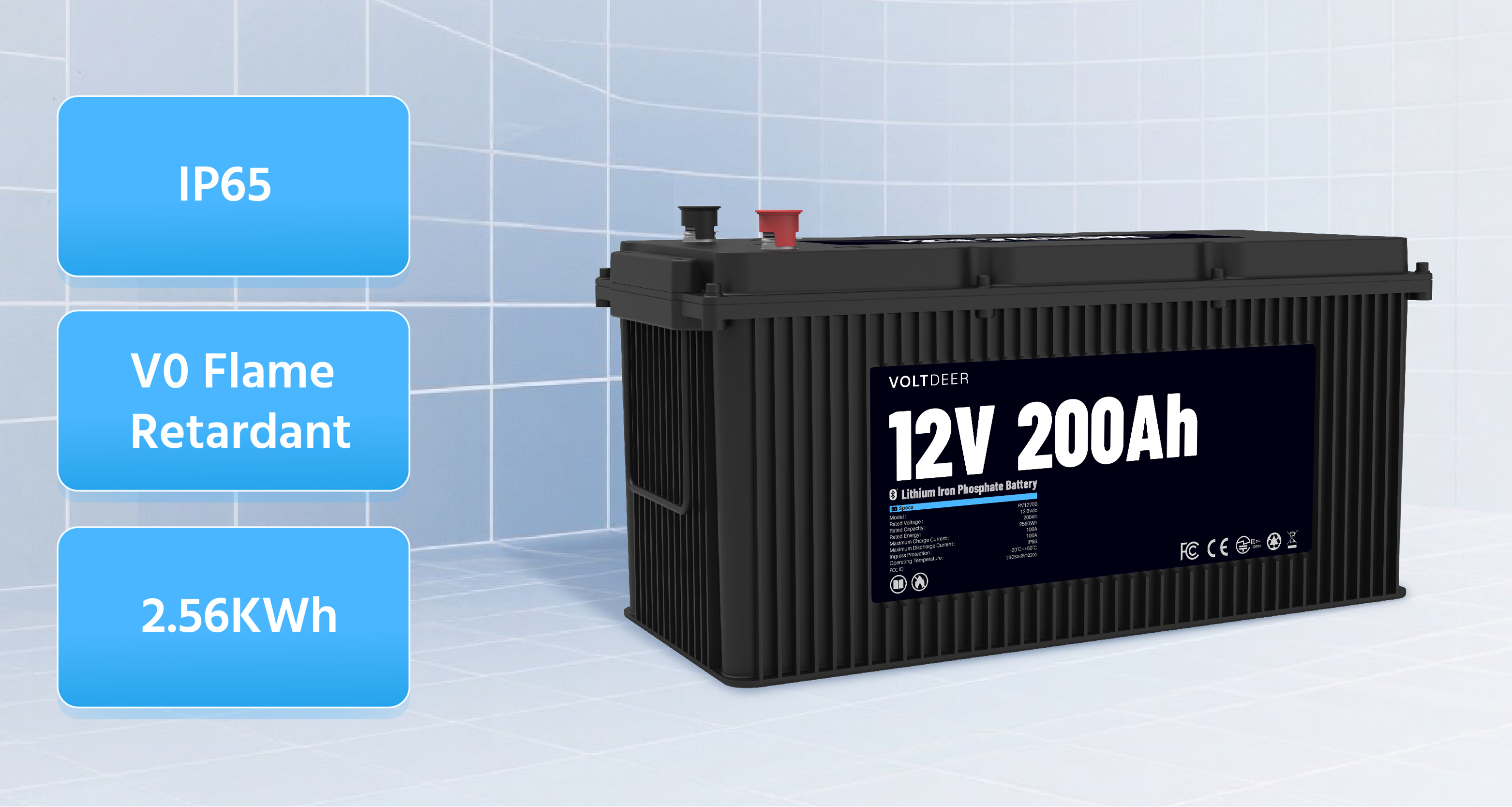

| Protection Rating | IP65 |
| Battery Type | LiFePO₄ |
