| Parameter | Value |
| Battery | |
| Rated capacity (Ah) | 100 |
| Nominal voltage(V) | 51.2 |
| Rated capacity(Wh) | 5120 |
| Cell type | LiFePO4 |
| Operating voltage range type(V) | 44-57.6 |
| Maximum continuous charging current(A) | 50 |
| Maximum continuous discharge current(A) | 50 |
| Heating film | disposition |
| Number of cycles | 6000 |
| PV Input | |
| Operating voltage range (Vdc) | 10-100 |
| Maximum input voltage (Vdc) | 100 |
| Maximum continuous input current (A) | 16 |
| Maximum input power (W) | 800*2 |
| AC on-grid Port | |
| Grid type | Single-phase |
| Nominal AC voltage (Vac) | 230 |
| Nominal AC frequency (Hz) | 50 |
| Maximum continuous output power(VA) | 2400 |
| Maximum continuous output current (A) | 10.43 |
| Maximum continuous input power(VA) | 2400 |
| Maximum continuous input current (A) | 10.43 |
| AC off-grid Port | |
| Grid type | Single-phase |
| Nominal AC voltage (Vac) | 230 |
| Nominal AC frequency (Hz) | 50 |
| Maximum continuous output power(VA) | 2400 |
| Maximum continuous output current (A) | 10.43 |
| Structural information | |

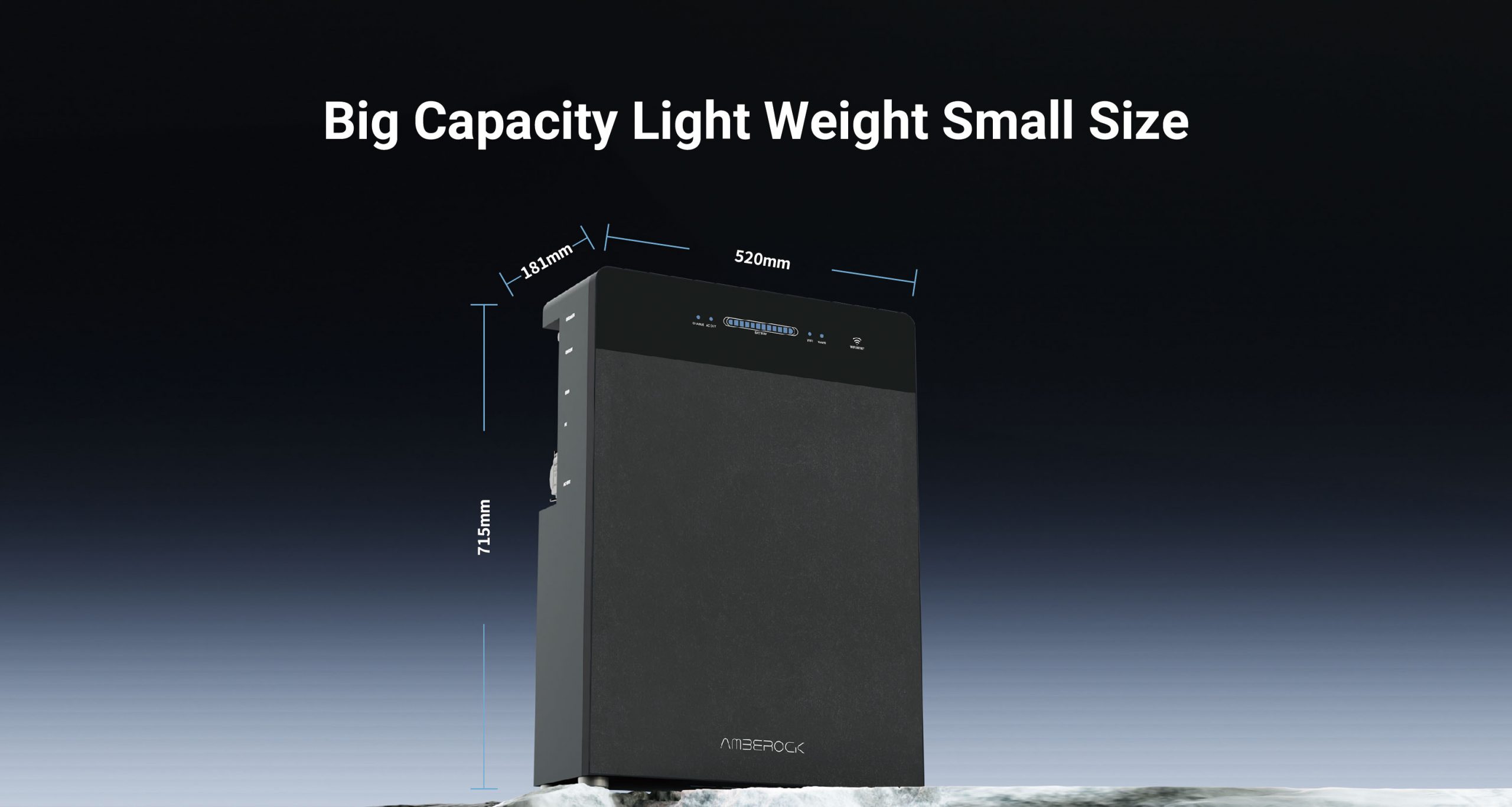

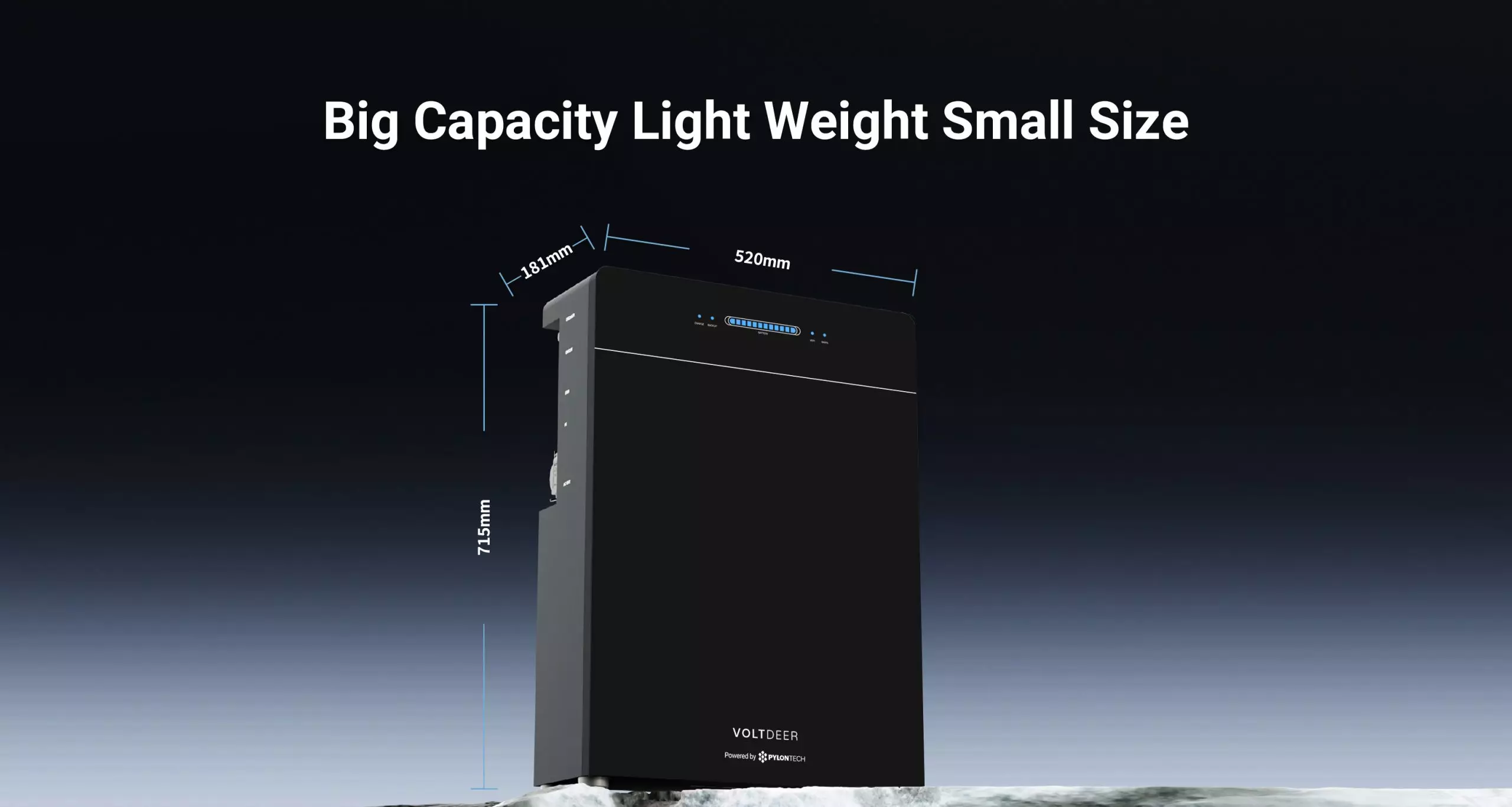

| Size (mm) | 510*180*720mm |
| Weight (kg) | 60 |
| Class of protection | IP65 |
| Environment parameter | |
| Permissible operating environment temperature (°C) | -20~60 |
| Relative humidity | 5 to 95% @No condensation |
| Altitude | ≤2000m |

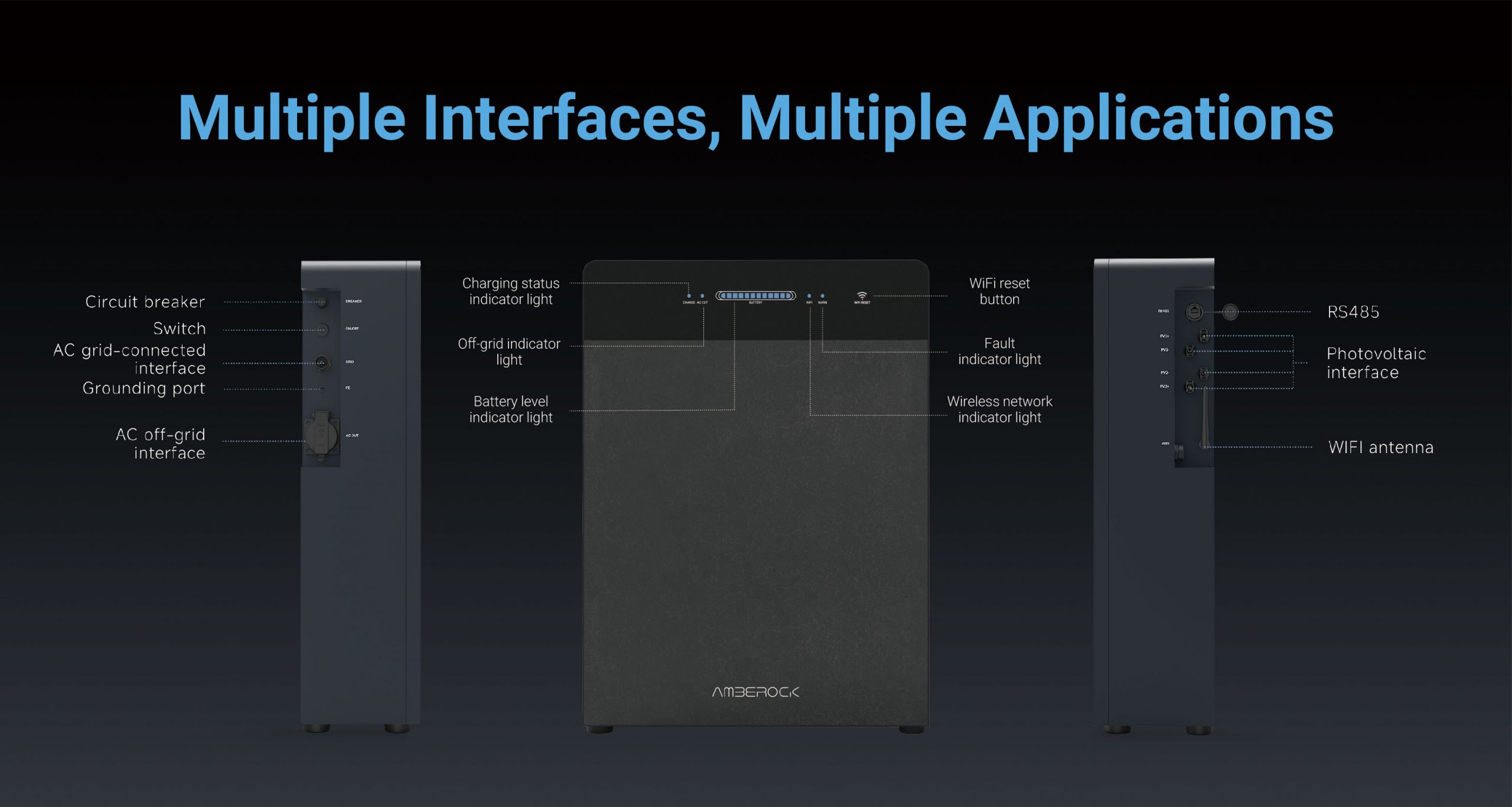

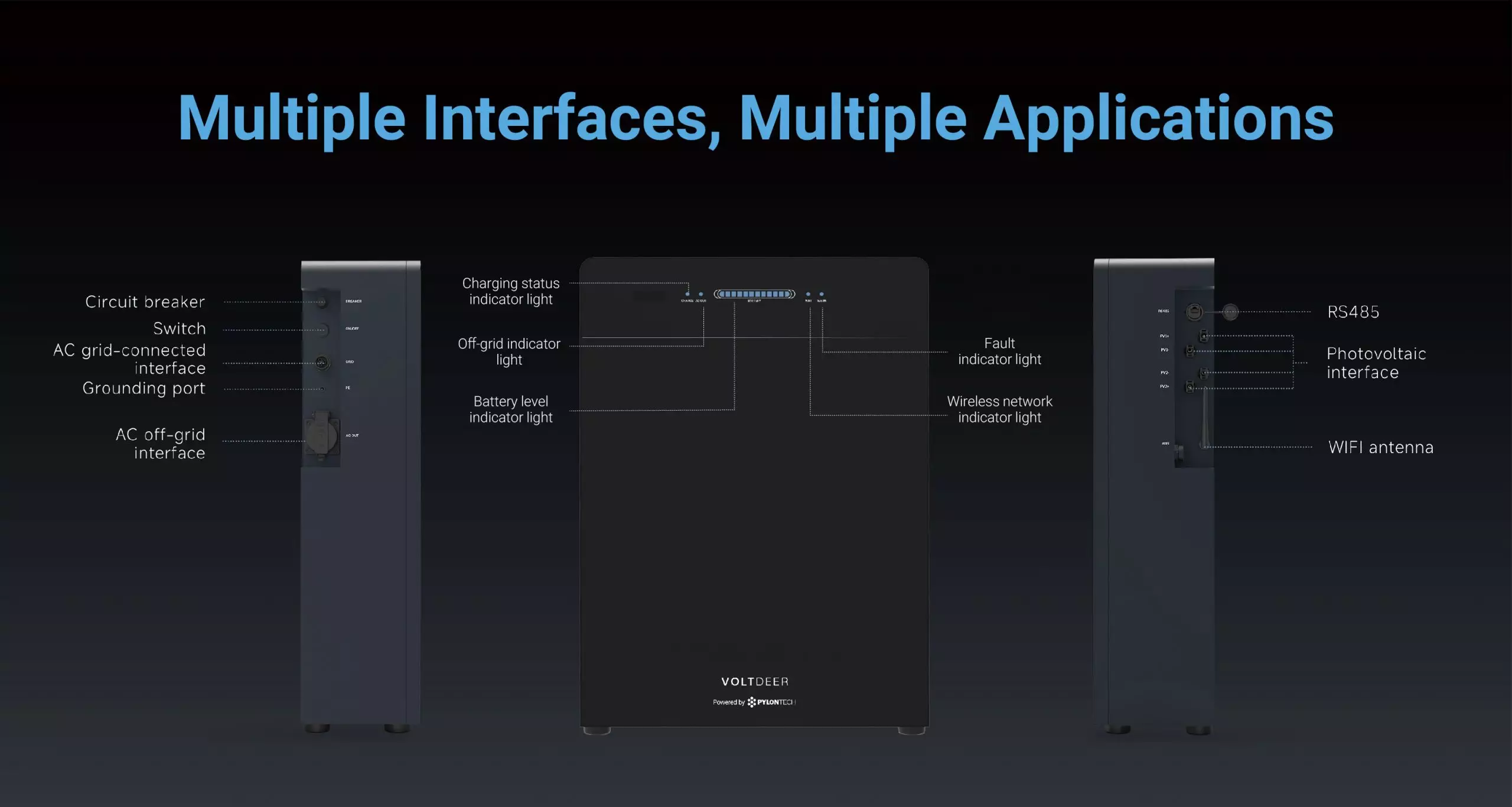

| Communication | |
| Communication interface | CAN、 RS485、 WiFi、 Bluetooth |
| Authentication | |
| Authentication | Rohs2.0、 CE、 CB、 EMC、 VDE-AR-N 4105、 UN38.3 |
| * The above data is based on controlled environment test records、 and actual use depends on external environment conditions. | |
